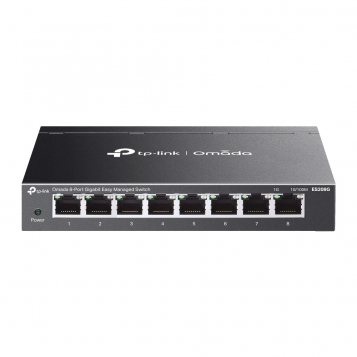

ES2 Omada by TP-Link 8-Port Gigabit Easy Managed Switch - ES208G
TP-Link ES208G
||||Omada by TP-Link 8-Port Gigabit Easy Managed Switch - ES208G
At a glance:
- 8 x 10/100/1000Mbps RJ45 ports
- Centralised cloud management
- VLAN, Port isolation, cable test, QoS for reliable surveillance networking
- Automatic loop prevention and IGMP snooping
- Fanless design for silent operation
- Durable metal casing and desktop/wall mounting design
The ES208G is an 8-port Gigabit Easy Managed Switch designed to provide reliable, high-speed network connectivity with the added flexibility of essential management features. Ideal for small businesses, retail environments, surveillance systems and home offices, it offers a simple upgrade from an unmanaged switch while giving administrators greater control over network performance without the complexity of a fully managed solution.
Equipped with eight Gigabit RJ45 ports, the ES208G delivers fast and dependable wired connections for computers, network storage, wireless access points, IP cameras and other Ethernet-enabled devices. With a switching capacity of 16 Gbps and a packet forwarding rate of 11.9 Mpps, the switch is capable of handling everyday business traffic efficiently, ensuring smooth data transmission across the network even when multiple devices are operating simultaneously.
The ES208G supports a range of Layer 2 management features that help improve network organisation, security and performance. VLAN support allows traffic to be segmented for enhanced security and simplified network management, while Quality of Service (QoS) prioritises latency-sensitive applications such as voice, video conferencing and surveillance traffic. Additional features including IGMP Snooping, loop prevention, port isolation and cable diagnostics help optimise network stability and make troubleshooting faster and more efficient.
Designed with ease of deployment in mind, the switch supports plug-and-play operation for instant connectivity, while more advanced settings can be configured through an intuitive web interface or centrally managed using the Omada cloud platform and mobile app. This enables administrators to monitor and maintain their network remotely, providing greater visibility and control without requiring dedicated networking expertise.
The compact metal enclosure provides excellent durability while the fanless design ensures completely silent operation, making the ES208G suitable for offices, meeting rooms and other noise-sensitive environments. Its desktop and wall-mountable design offers flexible installation options, allowing it to fit neatly into a wide variety of network deployments while maintaining a professional appearance.
As part of the TP-Link Omada Agile Series, the ES208G delivers an affordable and scalable networking solution for organisations looking to improve visibility and control over their wired infrastructure. Combining Gigabit performance, essential management features and centralised cloud management, it provides a dependable foundation for modern business networks while remaining simple to deploy and easy to manage as network requirements evolve.
| Hardware Features | |
|---|---|
| Interface | • 8× 10/100/1000 Mbps RJ45 Ports • Auto-Negotiation/Auto MDI/MDIX |
| Fan Quantity | Fanless |
| Installation | • Desktop • Wall Mount |
| Physical Security Lock | √ |
| Power Supply | AC/DC Adapter (Input: 100-240V AC; Output: 5V DC/0.6A) |
| Dimensions ( W x D x H ) | 6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm) |
| Surge Protection | ±6kV |
| Performance | |
| Packet Buffer Memory | 4 Mbit |
| Jumbo Frame | 15KB |
| Switching Capacity | 16 Gbps |
| Packet Forwarding Rate | 11.9 Mpps |
| MAC Address Table | 8K |
| Software Features | |
| Quality of Service | • Port-based/802.1p/DSCP QoS • 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rating Limit • Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control△ |
| L2 Features | • Static Link Aggregation • Loop Prevention / Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both • Port Statistics - Port Mirror Status - Traffic Statistics • 802.1ab LLDP |
| L2 Multicast | • IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave |
| VLAN | • MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VID |
| Transmission Method | Store-And-Forward |
| Management Features | |
| Omada App | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralised Management | • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requires the use of Omada Cloud-Based Controller |
| Management Features | • Web-based GUI • DHCP Client • Cable Diagnostics • Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrading† • Unified Configuration† |
| Others | |
| Certification | FCC, CE, RoHS |
| Package Content | • ES208G • Power Adapter • Rubber Feet • Installation Guide |
| Environment | • Operating Temperature: -5℃~45℃ (23℉~113℉) • Storage Temperature: -40℃~70℃ (-40℉~158℉) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing |
†These functions require the use of the Omada Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller (Omada Cloud Standard or Omada Cloud Essentials). Go to the Omada Cloud-Based Controller (Omada Cloud Standard) Product List or Omada Cloud Essentials Product List to find all the supported models.
△Cable Test and Port Qos are supported under Standalone Mode.
