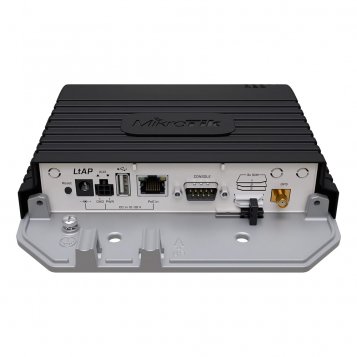

MikroTik LtAP LTE7 kit - LtAP-2HnD&R11e-LTE7
MikroTik LtAP-2HnD&R11e-LTE7
||||MikroTik LtAP LTE7 kit - LtAP-2HnD&R11e-LTE7
At a glance:
- 128 MB RAM
- 16 MB storage
- FLASH storage type
- 1 x 10/100/1000 Ethernet ports
- 3 x SIM slots
The MikroTik LtAP LTE7 Kit brings rugged, high-speed connectivity to wherever you need reliable network access, especially in mobile, remote, or industrial environments. Built around the powerful LTE Category 7 modem, it delivers real-world performance with up to 300 Mbps download and 100 Mbps upload speeds, alongside expanded frequency band support to help maintain strong connections even in congested or cross-border scenarios.
Its weather-resistant enclosure with an IP54 rating ensures durability against dust and moisture, making it ideal for deployment on vehicles, in outdoor installations, or in rugged workplaces where typical consumer routers just aren’t up to the challenge.
Designed to be flexible and user-centric, the LtAP LTE7 Kit supports three MiniSIM slots with automatic roaming, giving you redundancy and carrier choice as your deployment moves across regions. Built-in GPS enables precise location tracking for logistics, fleet management, or asset monitoring applications, while the single Gigabit Ethernet port with passive PoE-in lets you integrate it easily into wired networks.
Dual miniPCIe slots allow you to expand functionality with additional modems or radio interfaces to tailor the solution to your exact needs. Running on MikroTik’s powerful RouterOS v7 platform, you get advanced routing, firewall, VPN, and traffic-management capabilities without subscriptions or hidden fees.
Whether you’re keeping vehicles online on the move or extending connectivity to hard-to-reach sites, this kit offers a resilient, adaptable, and high-performance networking foundation.
| Specifications | |
|---|---|
| Product Code | LtAP-2HnD&R11e-LTE7 |
| Architecture | MMIPS |
| CPU | MT7621AT |
| CPU core count | 2 |
| CPU nominal frequency | 880 MHz |
| CPU Threads count | 4 |
| RouterOS license | 4 |
| Operating System | RouterOS v7 |
| Size of RAM | 128 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| Powering | |
| Number of DC inputs | 3 (DC jack, PoE-IN, Automotive) |
| DC jack input Voltage | 12-30 V |
| Automotive input Voltage | 12-27 V |
| Max power consumption | 24 W |
| Max power consumption without attachments | 12 W |
| PoE in | Passive PoE |
| Cooling type | Passive |
| PoE in input Voltage | 12-30 V |
| Mobile | |
| 3G Category | R8 (DL: 42.2 Mbps; UL: 5.76 Mbps) |
| LTE Category | 7 (DL: 300 Mbps; UL: 100 Mbps) |
| MIMO DL | 2x2 |
| MIMO UL | 1x1 |
| LTE FDD bands | 1 (2100 MHz) 3 (1800 MHz) 5 (850 MHz) 7 (2600 MHz) 8 (900 MHz) 20 (800 MHz) 28 (700 MHz) 32 (1500 MHz) |
| TAC | 35312597 |
| Wireless | |
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz Number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 2.5 |
| Wireless 2.4 GHz chip model | AR9382 |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
| Ethernet | |
| 10/100/1000 Ethernet ports | 1 |
| Peripherals | |
| Number of SIM slots | 3 Modem (Mini SIM) |
| MiniPCI-e slots | 2 |
| Serial console port | RS232 |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
