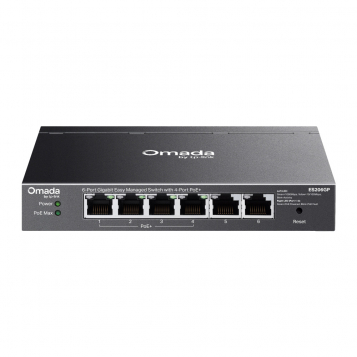

Omada by TP-Link 6-Port Gigabet Easy Managed Switch with 4-Port PoE+ - ES206GP
TP-Link ES206GP
||||Omada by TP-Link 6-Port Gigabet Easy Managed Switch with 4-Port PoE+ - ES206GP
At a glance:
- 6 x 10/100/1000 Mbps RJ45 ports (4 x 802.3af/at-compliant PoE+)
- 65W power budget with up to 30W for each PoE Port*
- Centralised cloud management
- Up to 250m PoE**, QoS△, PoE Auto Recovery‡, and Port Isolation for reliable surveillance networking
- Automatic loop prevention, VLAN and IGMP snooping
- Fanless design for silent operation
The ES206GP is a 6-port Gigabit Easy Managed Switch with integrated PoE+ support, designed to deliver reliable wired connectivity and simplified network management for small businesses, retail environments, surveillance systems and growing office networks. Combining high-speed Gigabit performance with intelligent Layer 2 features and cloud-based management, it provides an affordable and scalable solution for powering and connecting essential network devices.
Equipped with six Gigabit RJ45 ports, including four IEEE 802.3af/at-compliant PoE+ ports, the ES206GP is capable of supplying both power and data over a single Ethernet cable to compatible devices such as wireless access points, IP cameras, VoIP phones and access control systems. With a total PoE power budget of 65W and up to 30W available per PoE port, the switch offers the flexibility needed to support a wide range of powered devices while reducing installation costs and eliminating the need for separate power supplies.
Designed to provide dependable performance for everyday business networking, the ES206GP features a 12 Gbps switching capacity and an 8K MAC address table, ensuring efficient data forwarding and smooth communication between connected devices. Intelligent traffic management features including Quality of Service (QoS), VLAN support and IGMP Snooping help prioritise critical applications, improve network efficiency and optimise multicast traffic for services such as IP television and video surveillance.
The switch also includes practical features that simplify network administration and improve reliability. Automatic loop prevention helps protect against network disruptions, while port isolation enhances security by limiting unnecessary communication between connected devices. Cable diagnostics assist with fault detection, and PoE Auto Recovery can automatically restart unresponsive powered devices, making the ES206GP particularly well suited to surveillance deployments where continuous uptime is essential. The switch also supports extended PoE transmission distances of up to 250 metres at reduced speeds, providing additional flexibility when installing devices across larger sites.
Built with a durable metal enclosure and a completely fanless cooling system, the ES206GP operates silently, making it ideal for offices, meeting rooms, reception areas and other noise-sensitive environments. Its compact desktop and wall-mountable design allows it to be installed neatly in a variety of locations without occupying unnecessary space, while the robust construction ensures dependable long-term operation.
As part of the TP-Link Omada Agile Series, the ES206GP can be managed locally through an intuitive web interface or centrally through the Omada cloud platform using compatible controllers. This enables administrators to remotely configure devices, monitor network performance and maintain multiple sites from a single interface, providing a straightforward and cost-effective networking solution that grows alongside the needs of modern businesses.
†These functions require the use of the Omada Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller (Omada Cloud Standard or Omada Cloud Essentials). Go to the Omada Cloud-Based Controller (Omada Cloud Standard) Product List or Omada Cloud Essentials Product List to find all the supported models.
‡This switch supports PoE Auto Recovery under Standalone Mode (managed separately without a controller) and supports manual PoE Recovery under Controller Mode (centrally managed with a controller).
△Port-based/802.1p/DSCP QoS are supported under Standalone Mode. VLAN QoS is supported under Controller Mode.
*PoE budget calculations are based on laboratory testing. The actual PoE power budget is not guaranteed and will vary due to client limitations and environmental factors.
**The speed of the ports that support 250m PoE transmission will be downgraded to 10 Mbps. Actual transmission distance may vary depending on the quality of the cables.
| Hardware Features | ||
|---|---|---|
| Interface | • 6× 10/100/1000Mbps RJ45 ports (4× 802.3af/at-compliant PoE+) • Auto-Negotiation/Auto MDI/MDIX | |
| Fan Quantity | Fanless | |
| Installation | • Desktop • Wall Mount | |
| Physical Security Lock |
| |
| Power Supply | AC/DC Adapter (Input: 100-240V AC; Output: 53.5V DC/1.31A) | |
| PoE Ports (RJ45) | • Standard: 802.3af/at PoE+ compliant • PoE Ports: 4 ports • PoE Budget: 65W available for all PoE+ ports, 30W max per port • Fast PoE & Perpetual PoE • PoE Auto Recovery‡ • Up to 250m PoE transmission distance** | |
| Dimensions ( W x D x H ) | 6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm) | |
| Surge Protection |
| |
| Performance | ||
| Packet Buffer Memory | 4 Mbit | |
| Jumbo Frame | 15 KB | |
| Switching Capacity | 12 Gbps | |
| Packet Forwarding Rate | 8.93 Mpps | |
| MAC Address Table | 8K | |
| Software Features | ||
| Quality of Service | • Port-based/802.1p/DSCP QoS • 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rating Limit • Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control△ | |
| L2 Features | • Static Link Aggregation • Loop Prevention / Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both • Port Statistics - Port Mirror Status - Traffic Statistics • 802.1ab LLDP | |
| L2 Multicast |
| |
| VLAN | • MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VID | |
| Transmission Method |
| |
| Management Features | ||
| Omada App | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. | |
| Centralised Management | • Omada Cloud-Based Controller (Requires built-in version 5.15.22 or later) • Omada Hardware Controller (Requires built-in version 5.15.20 or later) • Omada Software Controller (Requires built-in version 5.15.20 or later) | |
| Cloud Access |
| |
| Zero-Touch Provisioning | Yes. Requires the use of Omada Cloud-Based Controller | |
| Management Features | • Web-based GUI • DHCP Client • Cable Diagnostics • Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrading† • Unified Configuration† | |
| Others | ||
| Certification |
| |
| Package Content | • ES206GP • Power Adapter • Power Cord • Rubber Feet • Installation Guide | |
| Environment | • Operating Temperature: -5℃~40℃ (23℉~104℉) • Storage Temperature: -40℃~70℃ (-40℉~158℉) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing | |
†These functions require the use of the Omada Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller (Omada Cloud Standard or Omada Cloud Essentials). Go to the Omada Cloud-Based Controller (Omada Cloud Standard) Product List or Omada Cloud Essentials Product List to find all the supported models.
‡This switch supports PoE Auto Recovery under Standalone Mode (managed separately without a controller) and supports manual PoE Recovery under Controller Mode (centrally managed with a controller).
△Port-based/802.1p/DSCP QoS are supported under Standalone Mode. VLAN QoS is supported under Controller Mode.
*PoE budget calculations are based on laboratory testing. The actual PoE power budget is not guaranteed and will vary due to client limitations and environmental factors.
**The speed of the ports that support 250m PoE transmission will be downgraded to 10 Mbps. Actual transmission distance may vary depending on the quality of the cables.
