Ubiquiti SuperLinki Antenna UACC-USL-ANT-HG

Ubiquiti UACC-USL-ANT-HG

SuperLinki Antenna		UACC-USL-ANT-HG
AWAITING STOCK

0 available Shipping today cut off.

Notify me
0 customer reviews:

£0.00

- +

Availability:Awaiting Date from Manufacturer

Linitx Quick Code # 18498 You can use the quick code in the search box

Manufacturer SKU: UACC-USL-ANT-HG

Manufacturer: Ubiquiti Inc

Categories:

window dressing ||||

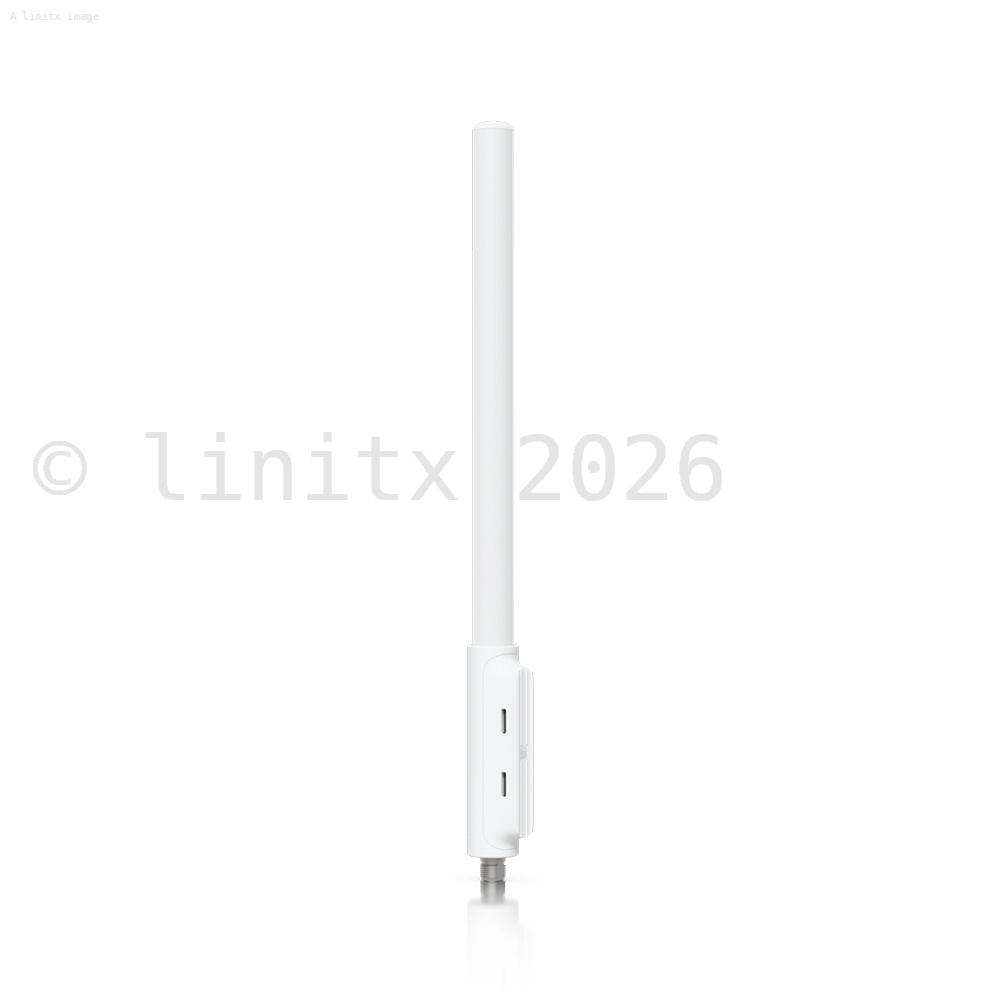

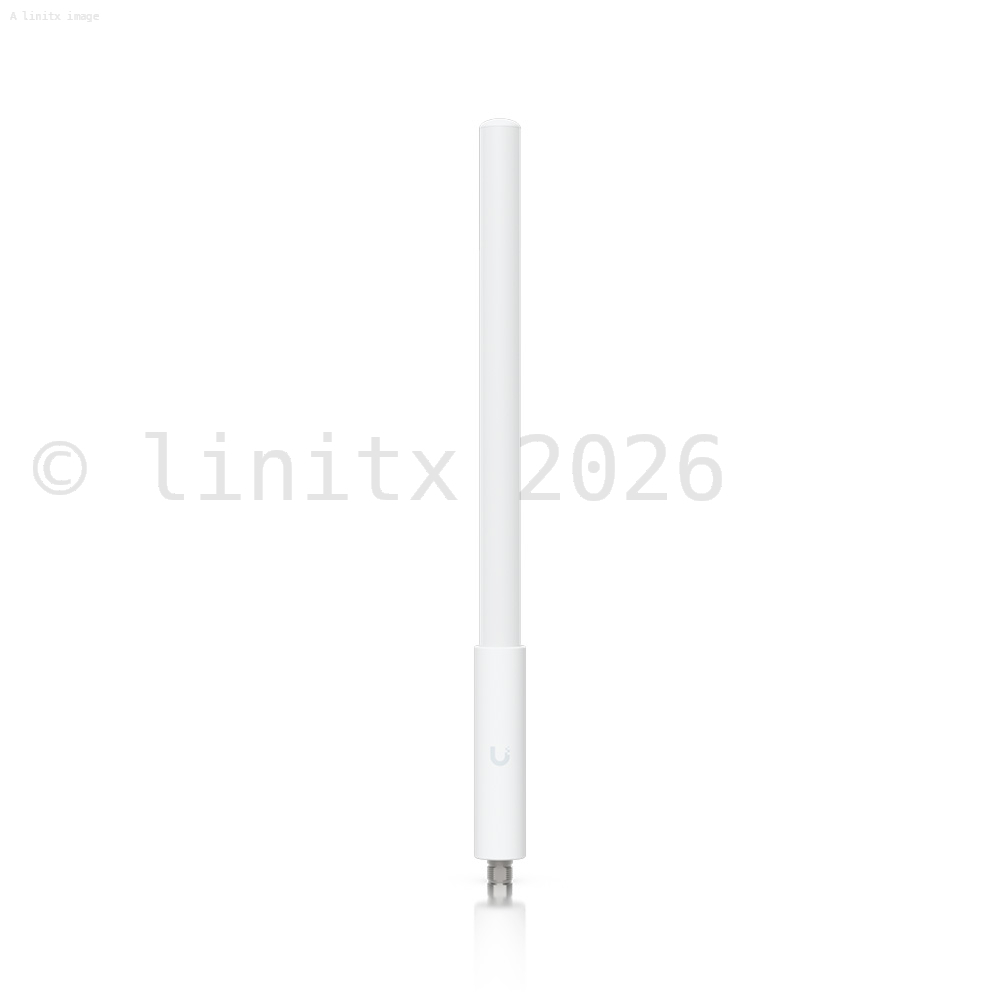

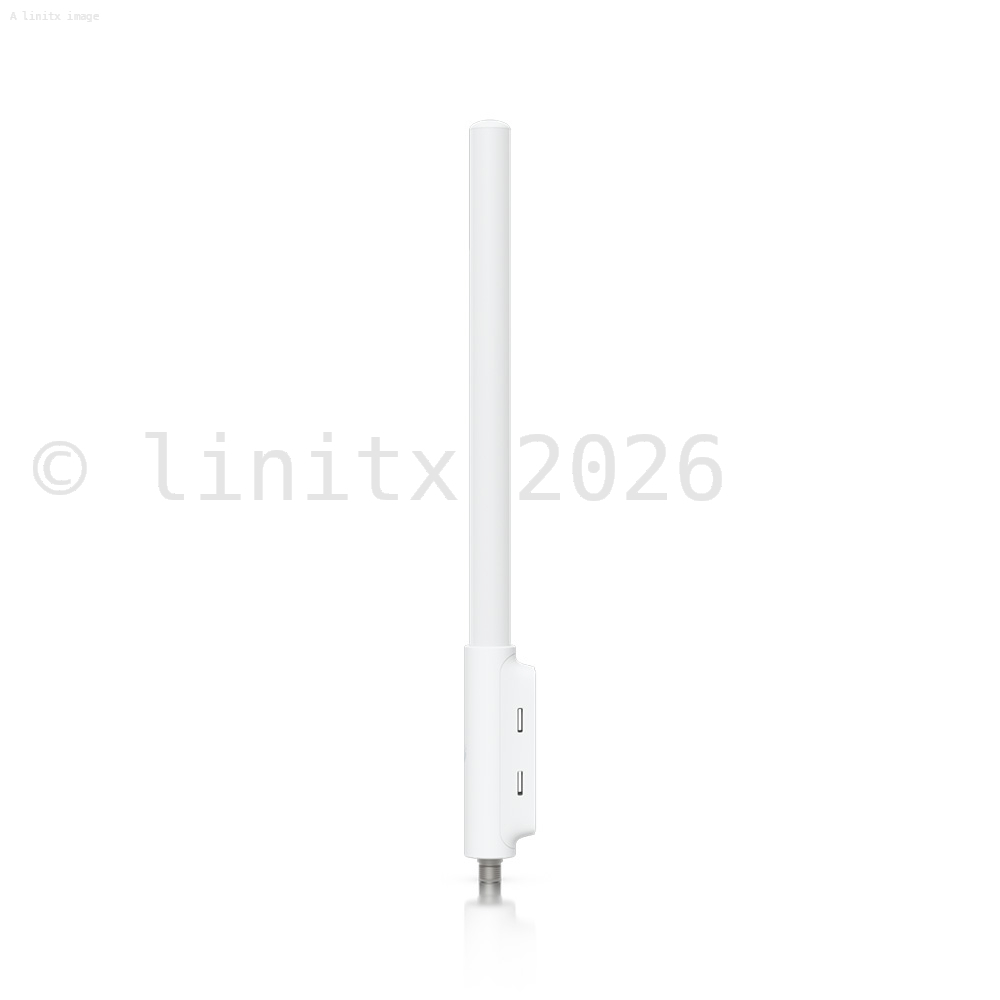

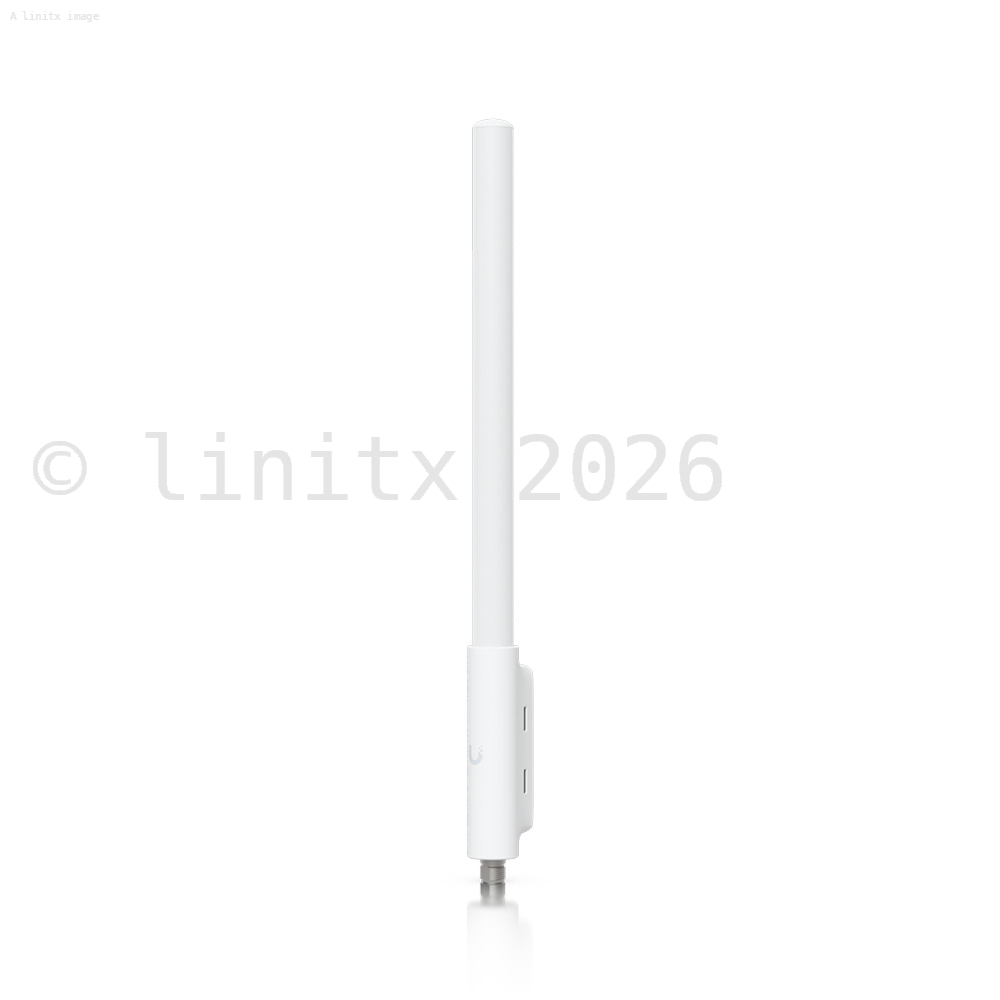

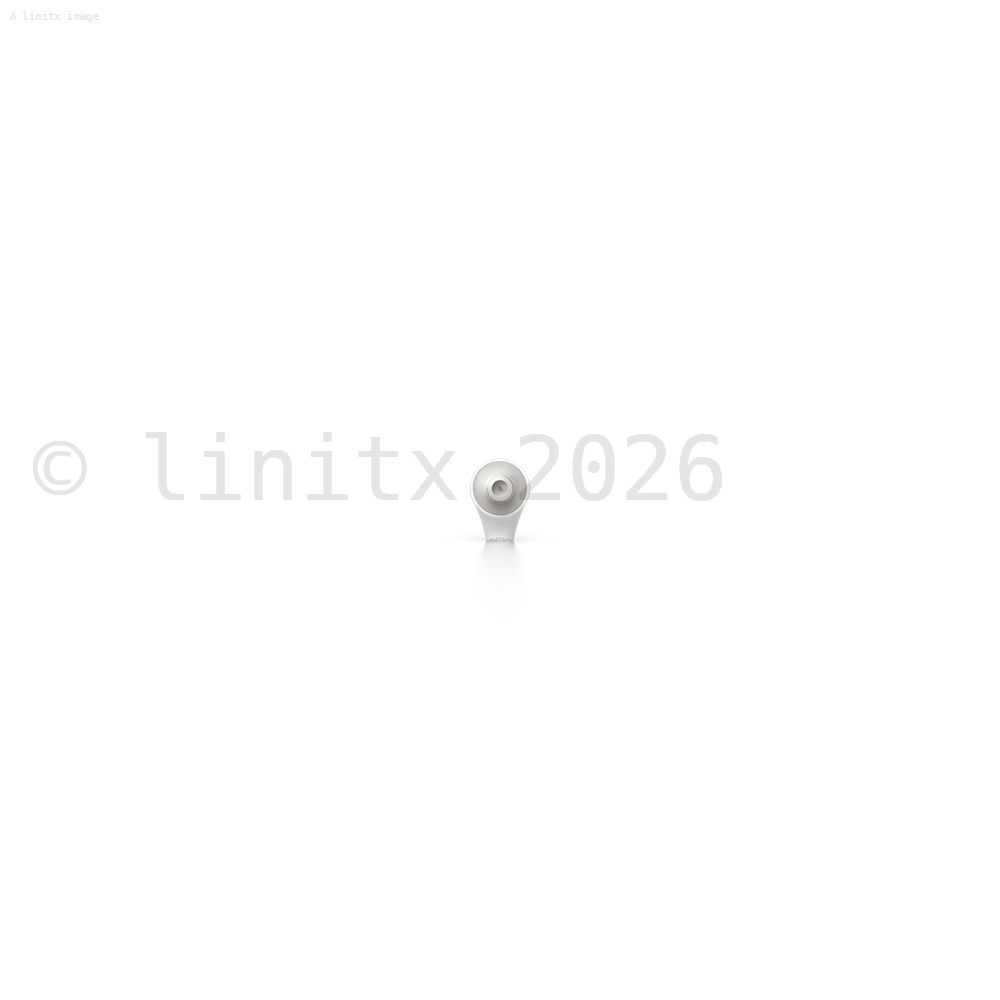

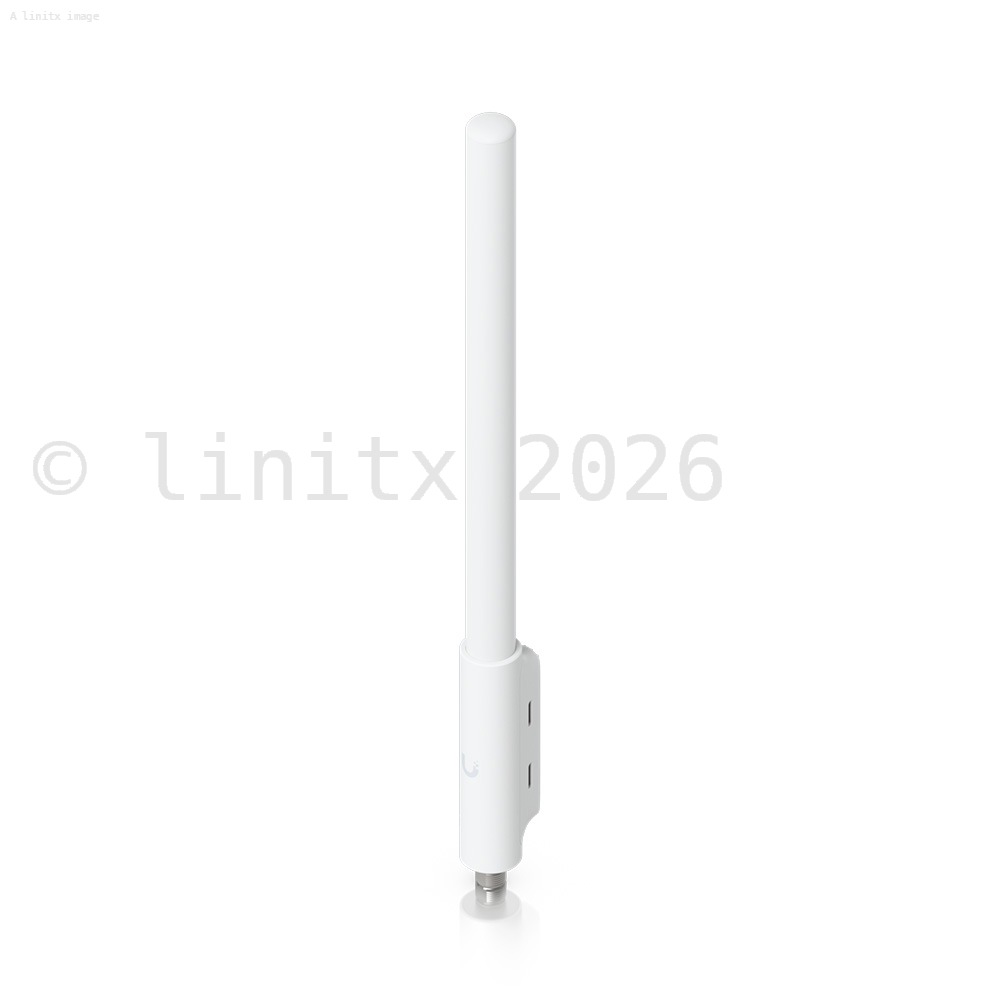

Ubiquiti UniFi SuperLink High-Gain Antenna - UACC-USL-ANT-HG

At a glance:

  • High-gain
  • Omnidirectional
  • IP67-rated outdoor enclosure
  • Compatibility: USL-Gateway

The SuperLink High‑Gain Antenna is engineered to significantly extend the reach of your SuperLink wireless network with robust, outdoor‑ready performance that stands up to changing weather.

Designed as an omnidirectional solution, this antenna delivers enhanced signal gain across both the 860–930 MHz band for SuperLink and the 2400–2480 MHz range for Bluetooth, improving connectivity and communication distance for compatible gateways and sensors. Built with a durable IP67‑rated enclosure, it thrives in harsh environments and remains reliable from frigid cold to sweltering heat, letting you install it confidently on poles or masts without worrying about dust or water ingress.

With its high gain and resilient construction, the SuperLink High‑Gain Antenna elevates your wireless setup by broadening coverage, strengthening links, and maintaining dependable performance in demanding outdoor deployments.



Overview
Dimensions

Device: 468.9 x 31.8 x 44.1 mm

With cable: 1458.4 x 31.8 x 44.1 mm

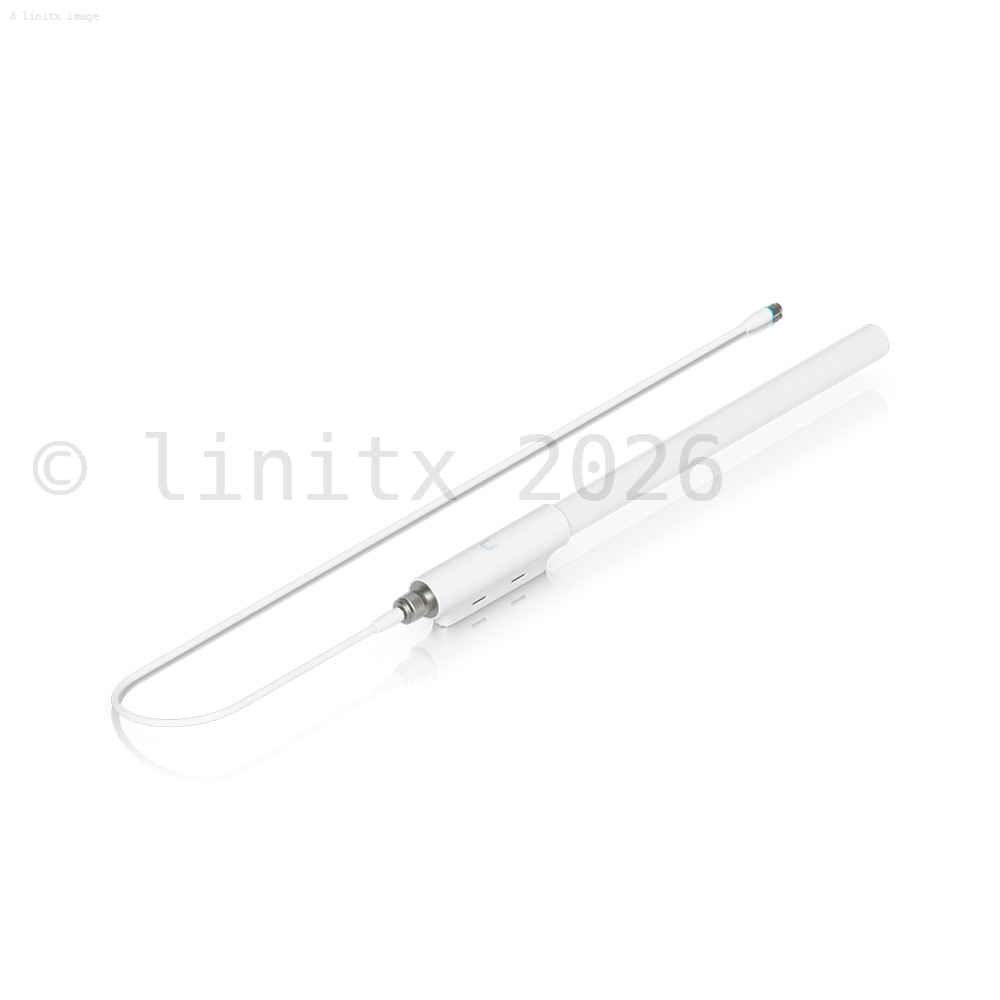

Cable: ⌀5.2 x 1000 mm

WeatherproofingIP67

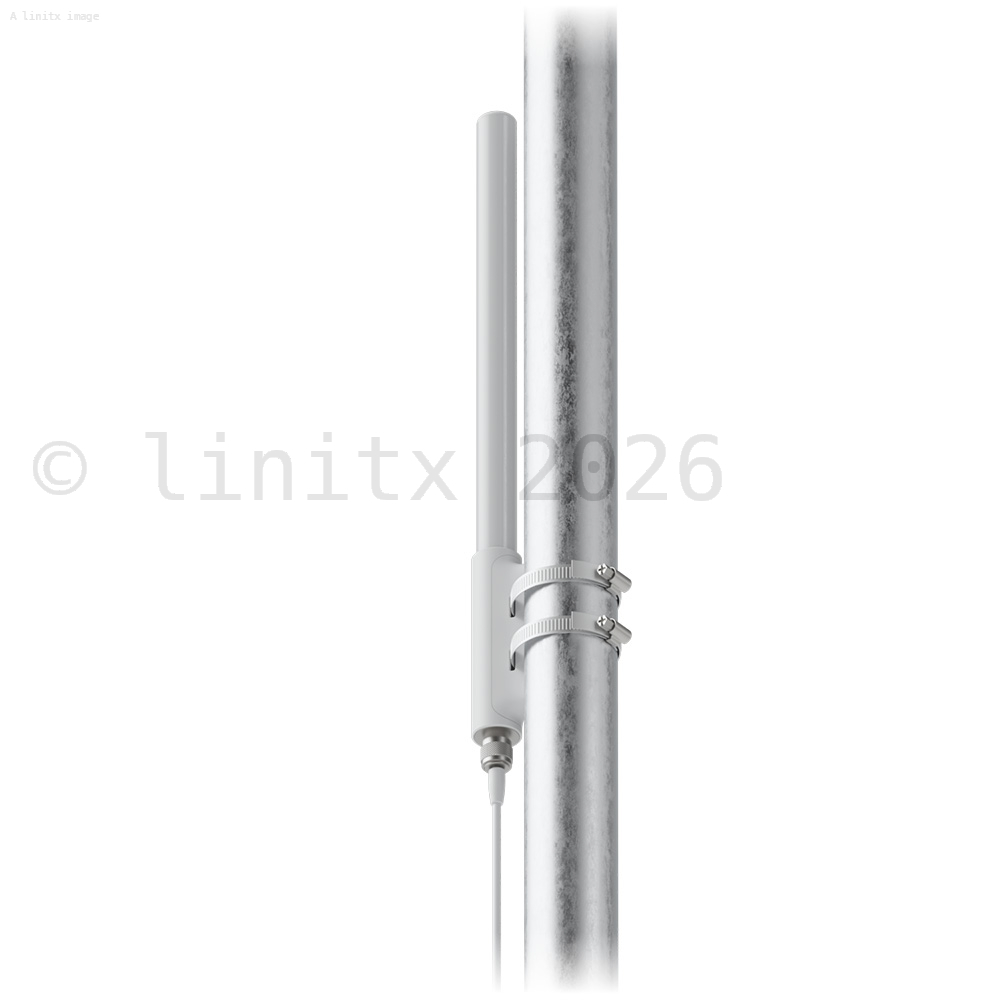

MountingPole Mount
Pole Mount Diameter1–2.17" (25–55 mm)
Wind Loading25.4 N at 200 km/h (5.7 lbf at 125 mph)
UniFi Application SuiteProtect
Performance
Operating Frequency
US
EU
Bluetooth

860–930 MHz
860–930 MHz
2400–2480 MHz
Antenna Gain
Bluetooth
SuperLink

4 dBi
7 dBi
Max. Range
Bluetooth
SuperLink

Up to 100 m (328 ft)
5 km (3.1 mi)
Hardware
Weight

Device: 275 g

Cable: 65 g

Enclosure MaterialPolycarbonate, glass fiber
Mount MaterialStainless steel
Ambient Operating Temperature-40 to 60° C
Ambient Operating Humidity10 to 90% noncondensing
CertificationsCE
