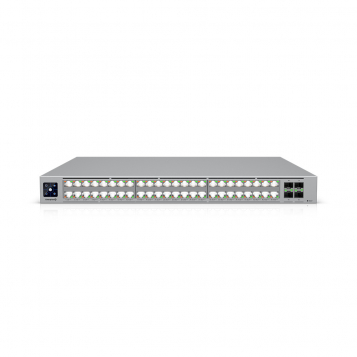

Ubiquiti UniFi Enterprise Campus 48 PoE Switch - ECS-48-POE
Ubiquiti ECS-48-POE
£3,341.99
Availability:
Despatched today
if ordered within the next 0 mins
Linitx Quick Code # 18241
Manufacturer SKU: ECS-48-POE
Manufacturer: Ubiquiti Inc
Categories:
||||Ubiquiti UniFi Enterprise Campus 48 PoE Switch - ECS-48-POE
| Specifications | |
|---|---|
| Dimensions | 442.4 x 43.7 x 496 mm (17.4 x 1.7 x 19.5") |
Port Layout 2.5 GbE RJ45 10 GbE RJ45 25G SFP28 | 16 (All PoE+++)
(2.5G/1G/100M/10M) 32 (All PoE+++)
(10G/5G/2.5G/1G/100M/10M) 4
(25G/10G/1G) |
| Max. PoE Output | Up to PoE+++ |
| Total PoE Availability | 200-240V AC Shared Mode: 2,150W
100-120V AC Shared Mode: 1,750W 200-240V AC Redundant Mode: 950W 100-120V AC Redundant Mode: 750W |
| Redundancy | (2) Hot-Swappable PSUs (4) Hot-Swappable Fans |
| Layer 3 | Yes |
| Form Factor | Rack mount (1U) |
| Etherlighting™ | Yes |
| Performance | |
| Switching Capacity | 920 Gbps |
| Total Non-Blocking Throughput | 460 Gbps |
| Forwarding Rate | 684 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 128,000 |
L3 Table Size ARP Entries IPv4 Routes | 128,000 256,000 |
| Packet Buffer Size | 8 MB |
| Layer 3 Features | |
| DHCP Server (Local Networks) | Yes |
| DHCP Relay | Yes |
| Inter-VLAN Routing (Local Networks) | Yes |
| Static Routing (Local Networks) | Yes |
| Layer 2 Features | |
| LACP Port Aggregation | Yes |
| STP & RSTP | Yes |
| Advanced IGMP Configuration (Querier, Fast Leave, Router Port) | Yes |
| IGMP Snooping | Yes |
| 802.1X Control | Yes |
| MAC-Based ACLs & Device Isolation | Yes |
| DHCP Snooping & Guarding | Yes |
| Egress Rate Limit | Yes |
| Flow Control | Yes |
| Storm Control | Yes |
| Multicast & Broadcast Rate Limiting | Yes |
| MAC Address Blocking | Yes |
| IP-Based ACLs & Network Isolation | Yes |
| MAC-Based Port Restriction | Yes |
| Port Isolation | Yes |
Port Mirroring | Yes |
| Jumbo Frames | Yes |
| LLDP-MED | Yes |
| Voice VLAN | Yes |
| Loop Protection | Yes |
| Hardware | |
PoE Ports PoE+++ | 48 |
Max. PoE Wattage per Port by PSE PoE+++ | 90W |
| Max. Power Consumption | 250W (Excluding PoE Output)
2,400W (Including PoE Output) |
| Power Method | (2) Universal input, 100-240V AC, 50/60 Hz |
| Power Input Method | (2) AC input, Hot-swappable power modules |
| Power Supply | (2) Hot-swappable AC/DC 1,200W power modules |
| Supported Voltage Range | 100—240V AC |
| Management | Ethernet
AR |
| Heat Dissipation (Excluding PoE Output) | 853 BTU/hr |
| Weight | Without mounting brackets: 9.46 kg (20.9 lb) With mounting brackets: 9.56 kg (21.1 lb) |
| Enclosure Material | SGCC steel |
| Supported Rack Depth | 482.6 mm (19") four-post racks
Posts depths ranging from 650 to 1,000 mm (25.6–39.4”) |
| LCM Display | 1.3" touchscreen |
| Fan Method | (4) hot-swappable fan modules |
| ESD/EMP Protection | Air: ± 30kV, contact: ± 19kV |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
Etherlighting™ Ethernet SFP28 | Yes Yes |
LEDs Ethernet System | Yes Yes |
| Software | |
Application Requirements UniFi Network | Version 9.0.114 and later |
There is no box content detail for this product yet.
There are no datasheets for this product yet.
