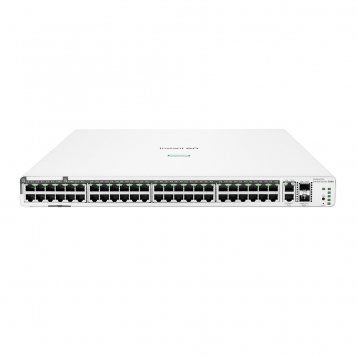

HPE Networking Instant On Switch 40p Gigabit CL4 8p Gigabit CL6 PoE 2p 10GBT 2p SFP+ 600W 1960 - JL809A
HPE JL809A
| Quantity | 1+ | 10+ | 20+ | 50+ | 100+ | 250+ |
| Price | £945.56 EXC VAT | £936.10 EXC VAT | £926.65 EXC VAT | £912.47 EXC VAT | £898.28 EXC VAT | Call Us 01449 888000 |
||||HPE Networking Instant On Switch 40p Gigabit CL4 8p Gigabit CL6 PoE 2p 10GBT 2p SFP+ 600W 1960 - JL809A
At a glance:
- 48 x RJ45 autosensing 10/100/1000 BASE-T ports
- 2 x SFP+ 10 GbE ports
- Single-Core ARM v7 Cortex-A9 @800 MHz
- 131 Mpps throughput
- 176 Gbps switching capacity
- 4H height stacking capabilities
The HPE Networking Instant On Switch 40p Gigabit CL4 8p Gigabit CL6 PoE 2p 10GBT 2p SFP+ 600W 1960 is a smart managed, fixed configuration Gigabit stackable switch. It has been designed for small and growing businesses and to handle bandwidth heavy applications.
This switch comes with flexible management options, which include: local web GUI, Instant On mobile app or the cloud based web portal.
Features:
- High level gigabit with 10 GbE networking
- Simplified network deployment and management
- Ease of use with cloud managed stacking
- Robust security to protect your network
| Specifications | |
|---|---|
| Ports | 48 RJ-45 autosensing 10/100/1000 BASE-T ports with 8 ports of IEEE 802.af/at/bt CL6 PoE and 40 ports of IEEE 802.af/at CL4 PoE (IEEE 802.3u Type 100 BASE-TX, IEEE 802.3ab Type 1000 BASE-T, IEEE 802.an 10 GBASE-T) Duplex: 100 BASE-TX: half or full 1000 BASE-T: full only 10 GBASE-T: full only 2 SFP+ 10 GbE ports 2 RJ-45 autosensing 100/1000/10 GBASE-T ports |
| Memory and processor | Single-Core ARM v7 Cortex-A9 @800 MHz 1 GB DDR3 512 MB NAND flash Packet buffer size: 1.5 MB |
| Throughput | 131 Mpps |
| Switching capacity | 176 Gbps |
| PoE capability | Total 600 W PoE Power (Up to 480 W of Class 6 or 600 W of Class 4 PoE) |
| Stacking capabilities | 4H height |
| Management features | HPE Networking Instant On Cloud Web browser SNMP Manager |
| Input voltage | 100-127VAC / 200-240VAC |
| Operating temperature | 0-40°C, 0-10,000 ft |
| Power consumption | Maximum: 100-127V: 790W 200-220V: 760W Idle: 100-127V: 60W 200-220V: 100W |
| Product dimensions |
|
| Weight | 4.9 kg |
There is no box content detail for this product yet.
There are no datasheets for this product yet.
