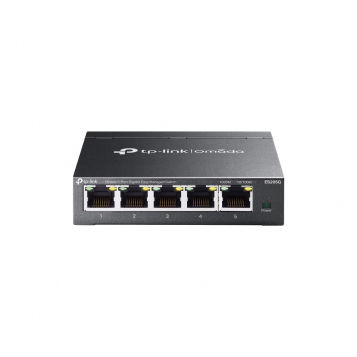

Omada by TP-Link 5-Port Gigabit Easy Managed Switch - ES205G
TP-Link ES205G
||||Omada by TP-Link 5-Port Gigabit Easy Managed Switch - ES205G
At a glance:
- 5 x 10/100/1000 Mbps RJ45 ports
- Centralised Cloud Management via the web or the Omada app†
- Automatic Loop Prevention, VLAN, and IGMP Snooping
- Fanless design for silent operation
The ES205G is a compact 5-port Gigabit Easy Managed Switch that delivers dependable wired networking with the added benefits of intelligent Layer 2 management and cloud-based administration. Designed for small businesses, home offices, retail environments and expanding network installations, it provides an ideal balance between plug-and-play simplicity and advanced networking capabilities, making it an excellent choice for users looking to improve network performance without the complexity of a fully managed switch.
Featuring five Gigabit RJ45 ports, the ES205G provides high-speed Ethernet connectivity for computers, network storage, printers, wireless access points and other connected devices. With a switching capacity of 10 Gbps and a forwarding rate of 7.4 Mpps, the switch is engineered to handle everyday business traffic efficiently, ensuring smooth and reliable communication across the network while supporting bandwidth-intensive applications such as file sharing, cloud services and IP communications.
To help optimise network performance, the ES205G includes a range of essential Layer 2 management features that provide greater control over traffic and connected devices. Support for VLANs enables secure network segmentation, while Quality of Service (QoS) allows critical applications such as voice and video to be prioritised for improved performance. Additional capabilities including IGMP Snooping, automatic loop prevention and cable diagnostics contribute to a more stable and efficient network, reducing downtime and simplifying troubleshooting when issues arise.
The switch has been designed for straightforward deployment, offering plug-and-play functionality for immediate operation while also supporting local management through an intuitive web interface or centralised cloud management via the Omada platform. This gives administrators the flexibility to configure network settings, monitor performance and manage devices remotely, making it easier to maintain multiple locations from a single interface as business requirements evolve.
Built with a durable metal enclosure and a completely fanless cooling system, the ES205G operates silently, making it well suited to offices, meeting rooms, classrooms and other environments where quiet operation is important. Its compact form factor supports both desktop placement and wall mounting, allowing the switch to be installed neatly in a wide variety of network environments while providing the durability required for long-term, reliable operation.
As part of the TP-Link Omada Agile Series, the ES205G integrates seamlessly with the Omada ecosystem, enabling centralised management alongside compatible gateways and wireless access points. Combining Gigabit performance, intelligent traffic management and simplified cloud administration, it provides a scalable and cost-effective networking solution for organisations seeking reliable connectivity and greater visibility across their wired infrastructure.
†These functions require the use of the Omada Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller (Omada Cloud Standard or Omada Cloud Essentials). Go to the Omada Cloud-Based Controller (Omada Cloud Standard) Product List or Omada Cloud Essentials Product List to find all the supported models.
△Port-based/802.1p/DSCP QoS are supported under Standalone Mode.
| Hardware Features | ||
|---|---|---|
| Interface | • 5× 10/100/1000 Mbps RJ45 Ports • AUTO Negotiation/AUTO MDI/MDIX | |
| Fan Quantity | Fanless | |
| Installation | • Desktop • Wall Mount | |
| Physical Security Lock | √ | |
| Power Supply | AC/DC Adapter (Input: 100-240V AC; Output: 5V DC/0.6A) | |
| Dimensions ( W x D x H ) | 3.9 × 3.9 × 1.0 in (100 × 98 × 25 mm) | |
| Surge Protection | ±6kV | |
| Performance | ||
| Packet Buffer Memory | 4 Mbits | |
| Jumbo Frame | 15 KB | |
| Switching Capacity | 10 Gbps | |
| Packet Forwarding Rate |
| |
| MAC Address Table | 8 K | |
| Software Features | ||
| Quality of Service | • Port-based/802.1p/DSCP QoS • 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rating Limit • Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control△ | |
| L2 Features |
| |
| L2 Multicast | • IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave | |
| VLAN | • MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VID | |
| Transmission Method | Store-And-Forward | |
| Management Features | ||
| Omada App | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. | |
| Centralised Management |
| |
| Cloud Access | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. | |
| Zero-Touch Provisioning | Yes. Requires the use of Omada Cloud-Based Controller | |
| Management Features | • Web-based GUI • DHCP Client • Cable Diagnostics • Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrading† • Unified Configuration† | |
| Others | ||
| Certification | FCC, CE, RoHS | |
| Package Content | • ES205G • Power Adapter • Installation Guide • Rubber Feet | |
| Environment | • Operating Temperature: 0℃~40℃ (32℉~104℉) • Storage Temperature: -40℃~70℃ (-40℉~158℉) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing | |
†These functions require the use of the Omada Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller (Omada Cloud Standard or Omada Cloud Essentials). Go to the Omada Cloud-Based Controller (Omada Cloud Standard) Product List or Omada Cloud Essentials Product List to find all the supported models.
△Port-based/802.1p/DSCP QoS are supported under Standalone Mode.
