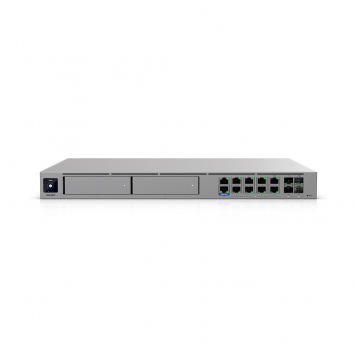

Ubiquiti UniFi Dream Machine Beast - UDM-Beast

Ubiquiti UDM-Beast

Ubiquiti UniFi Dream Machine Beast - UDM-Beast
Ubiquiti UniFi Dream Machine Beast - UDM-Beast Main Image
Ubiquiti UniFi Dream Machine Beast - UDM-Beast package contents
Ubiquiti UniFi Dream Machine Beast - UDM-Beast product
box
Ubiquiti UniFi Dream Machine Beast - UDM-Beast inside view
Ubiquiti UniFi Dream Machine Beast - UDM-Beast front of product
Ubiquiti UniFi Dream Machine Beast - UDM-Beast rear of product
Ubiquiti UniFi Dream Machine Beast - UDM-Beast side of product
Ubiquiti UniFi Dream Machine Beast - UDM-Beast underside of product
On Order

0 available Shipping today cut off.
Still available 5 arriving 14-Aug-2026 Click for more information

Login to preorder

Notify me
0 customer reviews:

£1,433.99


Choose from the following product options:

Extended Warranty  Extended warranty - covering hardware & software failure.

- +

Availability:Pre-Order Available

Linitx Quick Code # 18622 You can use the quick code in the search box

Manufacturer SKU: UDM-Beast

Manufacturer: Ubiquiti Inc


window dressing ||||

Ubiquiti UniFi Dream Machine Beast - UDM-Beast


At a glance:
  • 25 Gbps routing with IPS/IDS
  • 8 x 10 GbE RJ45 ports including 1 x WAN port (10G/5G/2.5G/1G/100M)
  • 2 x 10G SFP+ ports (10G/1G)
  • 2 x GbE ports including 1 x Shadow Mode port
  • 2 x 25G SFP28 ports including 1 x WAN port (25G/10G/1G)
  • 2 x 3.5” HDD bays
  • Integrated 128 GB SSD
  • DC power backup*
  • RJ45 Console port
  • Power input
  • 1.3” touchscreen
*Requires UniFi Power Backup.

The Ubiquiti UniFi Dream Machine Beast (UDM Beast) redefines what a modern cloud gateway can deliver, bringing hyperscale performance into a single, unified platform designed for the most demanding network environments. Built for high-density deployments, it combines extraordinary processing power with advanced routing and security capabilities, making it an ideal foundation for enterprise networks, large campuses, and performance-driven businesses.

At its core, the UDM Beast is engineered to handle immense traffic loads without compromise, delivering up to 25 Gbps of intrusion detection and prevention throughput while supporting thousands of connected devices simultaneously. This level of performance ensures seamless operation even in complex, high-demand scenarios, from multi-site infrastructures to data-intensive applications.

More than just a gateway, it integrates the full UniFi application suite into a single system, allowing complete control over networking, security, communications, and storage through a unified interface. This streamlined approach eliminates the need for multiple devices, simplifying deployment and ongoing management while maintaining total visibility across your entire network ecosystem.

Designed in a rack-mountable form factor, the UDM Beast pairs industrial-grade hardware with flexible connectivity, including multi-gigabit and 25G-ready interfaces that future-proof your infrastructure as bandwidth demands continue to grow. Its architecture is built not just for today’s requirements, but for the next generation of networking, ensuring long-term scalability and reliability.

The Dream Machine Beast lives up to its name by delivering uncompromising power, intelligent control, and enterprise-level capability in one cohesive solution, making it the ultimate choice for those who expect their network to perform without limits.


Overview
Dimensions442.4 x 43.7 x 325 mm
UniFi Application Suite
Network
Protect
Access
Talk
Connect


Managed UniFi Devices

750+
Managed Cameras(100) HD
(60) 2K
(40) 4K
Managed Access Hubs
200
Simultaneous Users Connected7,500+
Max. WAN Port Count8
Default WAN Ports(1) 25G SFP28
(1) 10 GbE RJ45
Port Layout
1 GbE RJ45
10 GbE RJ45
10G SFP+
25G SFP28
Console

2 (1G/100M/10M)
8 (10G/5G/2.5G/1G/100M)
2 (10G/1G)
2 (25G/10G/1G)
1
IDS/IPS Throughput25 Gbps
Form FactorRack mount (1U)
RedundancyShadow Mode (VRRP) Gateway Failover DC Power Backup
Security
Stateful Firewall
Application-Aware Layer 7 Firewall
DPI & Traffic Identification
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)
Content Filtering
Intrusion Prevention (IPS/IDS)
Ad Blocking
IDS/IPS Signatures55,000+ with CyberSecure
VPN & SD WAN
License-Free SD-WAN
Site-to-Site VPN
Site Magic
IPsec
OpenVPN


VPN Server
Identity Endpoint One-Click VPN
Teleport Zero-Configuration VPN
WireGuard
OpenVPN
L2TP


VPN Client
OpenVPN
WireGuard


Networking
Multi-WAN Load Balancing
Shadow Mode (VRRP) High Availability
Dynamic Routing
OSPF
BGP


Advanced QoS
Multicast DNS (mDNS)
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)
Integrated RADIUS Server
RADIUS over TLS (RadSec)
Additional Internet Failover with UniFi LTE Backup
Internet Quality and Outage Reporting
Policy-based WAN and VPN Routing
Customisable DHCP Server
IPv6 ISP Support
IGMP Proxy
All Traffic Flows
Hardware
NVR Storage(2) 3.5" NVR HDD bays
Built-in 128 GB SSD for Faster Experience
Max. Power Consumption100W
Power Method(1) Universal AC input, 100–240V AC, 3A Max., 50/60 Hz
(1) USP-RPS DC input, 11.5V DC, 13.05A
Power SupplyAC/DC, internal, 150W
Supported Voltage Range100–240V AC
Heat Dissipation342 BTU/hr
ProcessorOcta-core ARM® v9 at 2.1 GHz
System Memory16 GB
On-board StorageIntegrated 128 GB SSD
Weight5.5 kg (12.13 lb)
Enclosure MaterialAluminium CNC, SGCC steel
Mount MaterialSGCC steel
LCM Display1.3" touchscreen
ManagementEthernet
Bluetooth
LEDs
Ethernet
SFP+
SFP28
RPS
HDD

Button(1) Factory reset
ESD/EMP ProtectionAir: ± 8kV, contact: ± 4kV
Ambient Operating Temperature0 to 40° C (32 to 104° F)
Ambient Operating Humidity5 to 95% noncondensing
NDAA Compliant
CertificationsCE, FCC, IC
Software
Application Requirements
Mobile App

UniFi iOS™: Version 10.34.0 and later
UniFi Android™: Version 10.37.1 and late
