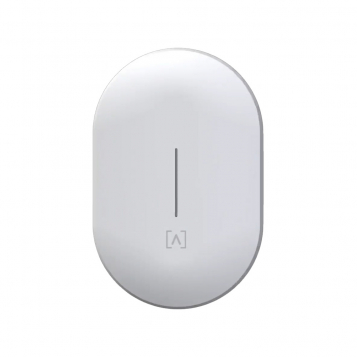

Alta Labs AP7-Pro Access Point - AP7-Pro Main Image
Alta Labs AP7-Pro Access Point - AP7-Pro package contents
In Stock

8 available Shipping today cut off.

0 customer reviews:

£287.99


Choose from the following product options:

Optional PoE Injector

- +

Availability: Despatched today Shipping today cut off. if ordered within the next 0 mins

Linitx Quick Code # 18967 You can use the quick code in the search box

Manufacturer SKU: AP7-PRO

Manufacturer: Alta Labs networking technology


window dressing ||||

Alta Labs AP7-Pro WiFi 7 Access Point - AP7-Pro

At a glance:

  • 10 Gbps Ethernet
  • WiFi 7 | Tri-Band
  • PoE+ for 2.5GbE or PoE++ for 10GbE
  • Scalable cloud-based management
  • AltaPass Multi-password technology
  • Hotspot functionality
  • Built on Qualcomm Technology
  • 5 & 6 Ghz mesh functionality
  • Superior range and performance
  • 5GHz: 4x4,O, 2.4 & 6 GHz 2x2
  • Mobile app
  • Advance filtering - Built-in DPI Engine
  • SSID broadcasting flexibility

The Alta Labs AP7 Pro is a next-generation WiFi 7 access point engineered to deliver exceptional wireless performance across residential, commercial, and enterprise environments. Designed to support the growing demands of modern networks, it combines ultra-fast connectivity, intelligent management, and a refined aesthetic that integrates seamlessly into any space.

Featuring a powerful tri-band architecture with dedicated 2.4 GHz, 5 GHz, and 6 GHz radios, the AP7 Pro provides outstanding speed, capacity, and coverage for high-density deployments. Its advanced WiFi 7 technology enables smoother streaming, faster file transfers, lower latency, and a more responsive user experience for bandwidth-intensive applications. A high-performance 10 Gigabit Ethernet interface ensures the access point can fully leverage next-generation network infrastructure while supporting demanding wireless workloads.

The AP7 Pro is built for scalability, allowing organisations to manage single-site or multi-site deployments through Alta Labs' intuitive cloud-based platform. Administrators benefit from real-time visibility, simplified configuration, advanced network analytics, and seamless remote management. Features such as intelligent mesh connectivity, hotspot capabilities, content filtering, and multi-password network segmentation provide the flexibility required for both business and hospitality environments.

Combining powerful wireless performance with elegant industrial design, the AP7 Pro delivers reliable, high-capacity connectivity that is ready for the future of wireless networking. Whether deployed in offices, retail spaces, educational facilities, or premium residential installations, it provides a secure, scalable, and high-performance networking solution designed to meet the demands of today's connected world.



Mechanical
Dimensions230 x 151.3 x 36.9 mm
Weight1.04kg
EnclosureTop Cover: Polycarbonate, Bottom Cover: Milled Aluminium
Mount Material
Ceiling/Wall/Drop-Ceiling: Steel
WeatherproofingNone
Hardware
Network InterfaceEthernet, WiFi, Bluetooth
Management Interface(1) 10 Gbps RJ45 Port
Button(s)Reset/Factory Reset
LEDRGB
Power MethodPoE+ for up to 2.5 Gbps, PoE++ for up to 10 Gbps
Power SupplyPoE+ or PoE++ Enabled Network Switch, or 48V, 1.25A PoE Adapter (Optional)
Supported Voltage Range42.5-57V DC
Power ConsumptionMax: 30 W for PoE+, 35 W for PoE++, 12 W Typical
MIMO6 GHz: 2x2, UL MU-MIMO, DL MU-OFDMA
5 GHz: 4x4, DL/UL MU-MIMO, DL/UL MU-OFDMA
2.4 GHz: 2x2, UL MU-MIMO, DL MU-OFDMA
Explicit TX Beam-Forming
Throughput Rate2.4 GHz: Up to 649 Mbps, 5 GHz: Up to 8.6 Gbps, 6 GHz: Up to 5.8 Gbps
Antenna Gain2.4 GHz: 4 dBi, 5 GHz: 4.75 dBi, 6 GHz: 4.5 dBi
MountingWall, Ceiling, Drop-Ceiling, Table Top
Operating Temperature-30 to 50°C
Operating Humidity
5 to 95% Noncondensing
CertificationsCE, UK, FCC, IC (Visit Alta.inc for a Full List of Certifications)
Max Physical Transmit Power
Max. Transmit Power2.4 / 5 GHz: 30 dBm EIRP, 6 GHz: 27 dBm EIRP
ETSI/CE Transmit Power Limits
2412 - 2472 MHz20 dBm (EIRP)
2402 - 2480 MHz (Bluetooth)7 dBm
5170 - 5330 MHz23 dBm (EIRP)
5490 - 5710 MHz30 dBm (EIRP)
5955 - 6415 MHz
23 dBm (EIRP)
Note:For CE/UK, the device is restricted to indoor use only when operating in the 5150-5350 MHz, 5945-6425 MHz frequency range.
Software
WiFi Standards802.11a/b/g/n/ac/ax/be (WiFi 4 / WiFi 5 / WiFi 6 / WiFi 7)
Roaming802.11r/k/v
Wireless Security2.4 GHz, 5 GHz: WPA2-Personal (PSK), WPA3-Personal (SAE), WPA-Enterprise (WPA2/WPA3)
6 GHz: WPA3-Personal (SAE), WPA3-Enterprise (192 bit)
Multiple SSID48 (16 per Radio), Unlimited per Site
Ability to Limit Clients Per SSIDYes
VLAN802.1Q
Advanced QoS802.11e
Guest Traffic IsolationSupported
Concurrent Clients500+
Zero Wait DFSYes
Intelligent WiFi SchedulingYes
Hotspot FunctionalityYes
Scalable To StadiumsYes
Seamless Per-Client SettingsVLAN, Device Type, Rate Limit, Hotspot/Schedule Exception
AltaPassYes*
DPIYes
Content FilteringYes
Customisable DashboardYes
Status SnapshotsYes

*Password-based assignment is not supported currently in 6 GHz due to industry standard limitations; however per-MAC assignment is supported in 6 GHz.
Supported Data Rates
802.11a/g6 Mbps to 54 Mbps
802.11b1 Mbps to 11 Mbps
802.11n6.5 Mbps to 600 Mbps (Up to MCS 31)
802.11ac6.5 Mbps to 3.4 Gbps (Up to MCS 9)
802.11ax2.4 GHz: Up to 574 Mbps, 5 GHz: Up to 4.8 Gbps, 6 GHz: Up to 2.4 Gbps
802.11be2.4 GHz: Up to 649 Mbps, 5 GHz: Up to 8.6 Gbps, 6 GHz: Up to 5.8 Gbps
