HPE Networking Instant On Switch 48p Gigabit CL4 PoE 4p SFP+ 370W - JL686B

HPE JL686B

HPE Networking Instant On Switch 48p Gigabit CL4 PoE 4p SFP+ 370W - JL686B

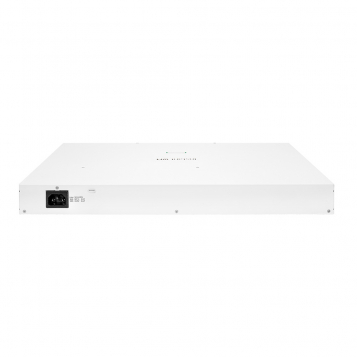

HPE Networking Instant On Switch 48p Gigabit CL4 PoE 4p SFP+ 370W - JL686B Main Image
HPE Networking Instant On Switch 48p Gigabit CL4 PoE 4p SFP+ 370W - JL686B package contents
HPE Networking Instant On Switch 48p Gigabit CL4 PoE 4p SFP+ 370W - JL686B product
box
In Stock

2 available Shipping today cut off.

0 customer reviews:

£625.30


Choose from the following product options:

Extended Warranty  Extended warranty - covering hardware & software failure.

- +

Availability: Despatched today Shipping today cut off. if ordered within the next 0 mins

Linitx Quick Code # 18228 You can use the quick code in the search box

Manufacturer SKU: JL686B

Manufacturer: HPE

Categories:

Quantity1+10+20+50+100+250+
Price£521.08 EXC VAT£515.87 EXC VAT£510.66 EXC VAT£502.84 EXC VAT£495.03 EXC VATCall Us 01449 888000
window dressing ||||

HPE Networking Instant On Switch 48p Gigabit CL4 PoE 4p SFP+ 370W 1930 - JL686B

At a glance:

  • 48 x RJ45 autosensing 10/100/1000 Class 4 PoE ports
  • 4 x SFP+ 1/10 GbE ports
  • ARM Cortex-A9 @ 800 MHz
  • 512 MB SDRAM
  • 256 MB flash
  • 130.95 throughput
  • 176 Gbps switching capacity

The HPE Networking Instant On Switch 48p Gigabit CL4 PoE 4p SFP+ 370W 1930 is a switch which has been designed for small and growing businesses that need enhanced performance to support bandwidth demanding applications. This switch will seamlessly integrate with existing Instant On indoor/outdoor access points and it can be centrally managed with the Instant On mobile app either onsite or remotely.

The HPE Networking Instant On Switch 48p Gigabit CL4 PoE 4p SFP+ 370W 1930 can be deployed using two management modes. The first option is the HPE Networking Instant On Cloud Management, which is accessed via the mobile app or the web portal. The second option is the local web GUI.

Features:

  • Simplified network management
  • Integrated security features
  • Delivers high performance



Specifications
Ports48 RJ-45 autosensing 10/100/1000 Class
4 PoE ports
(IEEE 802.3 Type 10B ASE-T, IEEE 802.3u Type 100 BASE-TX, IEEE 802.3ab Type 1000 BASE-T)

Duplex: 10 BASE-T/100 BASE-TX: half or
full
1000 BASE-T: full only
4 SFP+ 1/10 GbE ports
Memory and processorARM Cortex-A9 @ 800 MHz
512 MB SDRAM, 256 MB flash
1.5 MB packet buffer
Throughput130.95 Mpps, maximum
Switching capacity176 Gbps
PoE capability370 W Class 4
Management features Instant On Portal, Web browser, SNMP Manager
Input voltage100 - 127 / 200 - 240 VAC
Operating temperature0°C to 40°C
Power consumption 520W maximum, 50W idle
Product dimensions
  • 4.39 x 44.25 x 32.26 cm
  • 1.73 x 17.42 x 12.7 in
Weight4.59 kg


There is no box content detail for this product yet.
There are no reviews for this product yet.
There are no datasheets for this product yet.
