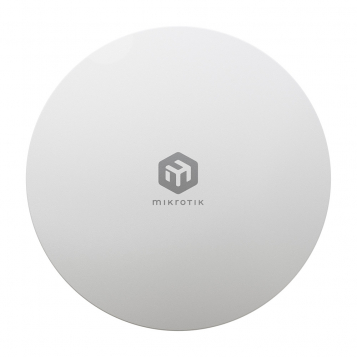

MikroTik ATL 5G R16 Kit - 5G Base Station - ATLGM+RG520F-EU
MikroTik ATLGM&RG520F-EU
| Quantity | 1+ | 10+ | 20+ | 50+ | 100+ | 250+ |
| Price | £299.99 EXC VAT | £296.99 EXC VAT | £293.99 EXC VAT | £289.49 EXC VAT | £284.99 EXC VAT | Call Us 01449 888000 |
||||MikroTik ATL 5G R16 Kit - 5G Base Station - ATLGM&RG520F-EU
At a glance:
- 4x4 MIMO
- 5G and LTE CAT20 support
- 1 x Micro SIM or built-in eSIM support
- 1 x PoE-in RJ45 (802.3af/at)
- RouterOS v7 - ARM 64bit
The MikroTik ATL 5G with built-in eSIM lets you activate a data plan easily - right from your MikroTik account.
Engineered for remote and rugged deployments, ATL 5G combines a high-gain 16 dBi directional antenna, 4x4 MIMO, and full Band 28 support for superior coverage - even in low-signal areas. Whether you’re on a windy rooftop or deep in rural terrain, this device delivers reliable, high speed internet with just one cable for power and data (thanks to PoE-in support).
Its weather resistant, IP66-rated enclosure is built to survive extreme conditions, while the spaceship-like design naturally sheds snow and rain. From smart farms to backup networks, the ATL 5G is your solution for fast, dependable 5G.
Key Features:
- eSIM Support: Get online instantly with MikroTik’s built-in eSIM — no physical SIM card required
- 16 dBi Directional Antenna: Long-range, high-gain signal for remote and rural coverage
- 4x4 MIMO & Band 28 Support: Enhanced speed, reliability, and compatibility with low-frequency bands
- Wide Band Coverage: Optimised for both LTE and 5G, including 700 MHz–1 GHz sweet spots
- Gigabit Ethernet with PoE-In: Simplified installation with one cable for both power and data
- Weatherproof Design (IP66): Dust-tight and water-resistant — ready for harsh environments
- Dual-core ARM CPU & 512 MB RAM: Smooth performance for demanding applications
| Specifications | |
|---|---|
| Product Code | ATLGM&RG520F-EU |
| CPU | Dual-Core 88F3720 800 MHz |
| CPU architecture | ARM 64bit |
| RAM | 512MB |
| Storage | 32MB Flash |
| Number of 1G Ethernet ports | 1 |
| Number of M.2 slots | 1 |
| SIM slots | 1 Micro SIM, eSIM |
| LTE modem | R11mL-RG520F |
| TAC | 86945405 |
| Antenna gain | 16 dBi |
| MIMO DL | 4x4 |
| 5G SA Category | 4.2 Gbps Downlink, 900 Mbps Uplink |
| 5G SA FDD bands | 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800 MHz) / 28 (700 MHz) |
| 5G SA TDD bands | 38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz) / 75 (1500 MHz) / 76 (1500 MHz) / 77 (3700 MHz) / 78 (3500 MHz) |
| 5G NSA Category | 5.0 Gbps Downlink, 650 Mbps Uplink |
| 5G NSA FDD bands | 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800 MHz) / 28 (700 MHz) |
| 5G NSA TDD bands | 38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz) / 75 (1500 MHz) / 76 (1500 MHz) / 77 (3700 MHz) / 78 (3500 MHz) |
| LTE Category | 20 (2.0 Gbps Downlink, 200 Mbps Uplink) |
| LTE FDD bands | 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 28 (700MHz) / 32 (1500 MHz) |
| LTE TDD bands | 38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz) / 42 (3500MHz) / 43 (3700MHz) |
| 3G Category | R8 (42.2Mbps Downlink, 5.76Mbps Uplink) |
| 3G bands | 1 (2100MHz) / 5 (850MHz) / 8 (900MHz) |
| Dimensions | 311 x 311 x 179 mm |
| Operating system | RouterOS v7, License level 3 |
| Operating temperature | -40°C to +70°C |
| Power | |
| Number of DC inputs | 1 |
| DC Input Type | PoE-in (12-56V) |
| Power adapter nominal voltage | 24V |
| Power adapter nominal current | 0.8 A |
| PoE-In | 802.3af/at |
| Max power consumption (without attachments) | 10 W |
| Max power consumption | 10 W |
- ATL 5G R16
- 24V1.2A UK PSU
- Gigabit PoE Injector
- Hose Clamp
