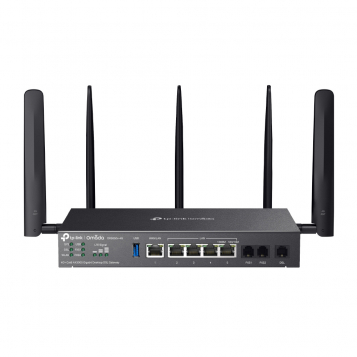

Omada by TP-Link 4G+ Cat6 AX3000 Wi-Fi 6 Gigabit Desktop DSL Gateway - DR3650v-4G
TP-Link DR3650v-4G
||||Omada by TP-Link 4G+ Cat6 AX3000 Wi-Fi 6 Gigabit Desktop DSL Gateway - DR3650v-4G
At a glance:
- 3 x RJ11 ports (2 x FXS & 1 x DSL)
- 5 x RJ45 gigabit ports
- 1 x USB 3.0 port
- 2 x Nano SIM for 4G/LTE failover
- Centralised management
The DR3650V-4G is an AX3000 Wi-Fi 6 desktop DSL gateway that combines high-speed broadband, 4G LTE connectivity, advanced networking features and enterprise grade management into a single, powerful solution. Designed for small and medium-sized businesses, branch offices and remote locations, it delivers fast, dependable internet access while providing the flexibility to operate across DSL, Ethernet and mobile broadband connections.
Powered by dual-band Wi-Fi 6 technology, the DR3650V-4G offers combined wireless speeds of up to 3.0 Gbps, delivering the performance needed for cloud applications, video conferencing, VoIP services and bandwidth-intensive workloads. Technologies such as OFDMA, 1024-QAM and 160 MHz channel support help improve network efficiency, increase throughput and reduce latency, ensuring reliable wireless connectivity for multiple users and connected devices.
The integrated VDSL2 Profile 35b modem supports broadband speeds of up to 350 Mbps and is fully compatible with VDSL2, ADSL2+, ADSL2 and ADSL services, making it suitable for a wide range of DSL providers. In addition to wired broadband, the router features built-in 4G+ Cat 6 LTE with dual Nano SIM slots, allowing mobile broadband to be used as either a primary internet connection or an automatic failover service. Intelligent load balancing across DSL, Ethernet WAN and 4G connections helps maximise uptime and maintain business continuity by keeping traffic flowing even if one connection becomes unavailable.
Designed with connectivity in mind, the DR3650V-4G includes five Gigabit Ethernet ports, comprising a configurable WAN/LAN port alongside four dedicated LAN ports for high-speed wired devices. Three RJ11 ports, including two FXS interfaces for VoIP telephony and a dedicated DSL port, provide support for integrated voice services, while the USB 3.0 port enables the connection of compatible storage devices or additional 4G/3G USB modems for even greater deployment flexibility.
Business-class security is built into the gateway, with support for IPSec, OpenVPN, WireGuard, PPTP, L2TP, GRE and SSL VPN technologies, enabling secure remote access for employees and encrypted site-to-site connectivity between offices. Comprehensive firewall capabilities, traffic management and advanced routing features help protect the network while maintaining optimal performance for critical business applications.
As part of the TP-Link Omada Software Defined Networking platform, the DR3650V-4G can be centrally managed alongside Omada switches and access points through cloud-based, hardware or software controllers. Administrators can remotely configure devices, monitor network health, deploy updates and manage multiple sites from a single interface, making it an ideal choice for organisations looking for a scalable, secure and easy-to-manage networking solution that combines broadband, wireless networking and mobile failover in one compact device.
| Security | ||
|---|---|---|
| Access Control | Source/Destination IP Based Access Control | |
| Filtering | • Web Group Filtering*5 • URL Filtering • Web Security*5 | |
| ARP Inspection | • Sending GARP Packets • ARP Scanning*5 • IP-MAC Binding | |
| Attack Defence | • TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN | |
| Hardware Features | ||
| Interface | • 1× Gigabit WAN/LAN Port • 4× Gigabit LAN Ports • 1× DSL Port • 2× FXS Ports • 1× USB 3.0 (supports USB LTE dongle and USB Storage) • Dual Nano SIM Slot (4G+ Cat6) | |
| Button | Reset Button | |
| Power Supply | 12V DC / 3.3A Power Adapter | |
| Wi-Fi Frequency & Signal Rate | • 2.4 GHz: 574 Mbps • 5 GHz: 2402 Mbps (HE160) | |
| Flash |
| |
| DRAM | 512 MB DDR4 | |
| Dimensions ( W x D x H ) |
| |
| Antenna | • Wi-Fi: 3× 5GHz 5dBi & 2.4GHz 3.5dBi dual-band detachable antennas • LTE: 2× 4.0dBi omnidirectional detachable antennas | |
| Mounting | Desktop / Wall / Rack mount (Purchase Rackmount Kit-D226 Separately) | |
| Max. Power Consumption | Power adapter not included: 28.482 W (Full load + USB) Power adapter included: 31.42 W (Full load + USB) | |
| Performance | ||
| Concurrent Session | 150,000 | |
| New Sessions /Second | 3,800 | |
| NAT (Static IP) | 937.2 Mbps / 936.1Mbps | |
| NAT(DHCP) | 945.8 Mbps / 940.6Mbps | |
| NAT(PPPoE) | 942.9 Mbps / 942.9Mbps | |
| NAT (L2TP) | 837.4 Mbps / 881.5Mbps | |
| NAT (PPTP) | 803.0 Mbps / 910.5 Mbps | |
| 66 Byte Packet Forwarding Rate | 1,453,489 pps / 1,453,488 pps | |
| 1,518 Byte Packet forwarding rate | 81,274 pps / 91,275 pps | |
| IPsec VPN Throughput | • ESP-SHA1-AES256: 569.9Mbps • ESP-SHA256-AES256: 543.3Mbps • ESP-SHA384-AES256: 549.0Mbps • ESP-SHA512-AES256: 539.3Mbps | |
| GRE | • Unencrypted: 541.8Mbp • Encrypted: 289.2Mbps | |
| GRE※ | • Unencrypted: 541.8Mbp • Encrypted: 289.2Mbps | |
| WireGuard VPN | 311.6Mbps | |
| OpenVPN | 129.3Mbps | |
| L2TP VPN Throughput | • Unencrypted: 909.4 Mbps • Encrypted: 494.9Mbps | |
| PPTP VPN Throughput | • Unencrypted: 897.5 Mbps • Encrypted: 190.8 Mbps | |
| DPI Throughput※ | - | |
| SSL VPN Throughput |
| |
| Wireless Features | ||
| Advanced Features | • Seamless Roaming • Mesh (with EAP that supports Mesh) • OFDMA • Beamforming • Enable/Disable SSID Broadcast • Enable/Disable Wireless Radio • MU-MIMO • Load Balance • Automatic Channel Selection Algorithm • Airtime Fairness • Rate Limit: Based on SSID/Client • Transmit Power Control: Adjust transmit Power on dBm • Multiple SSIDs: 16 in total (8 per radio) • Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise | |
| Guest Network | Support | |
| Basic Function | ||
| WAN Connection Type | • Static IP • Dynamic IP • PPPoE (supports MRU Configuration) • PPTP • L2TP | |
| MAC Clone | Modify WAN Address | |
| DHCP | • DHCP Server • DHCPv6 PD Server (only in Standalone Mode) • DHCP Options Customization • DHCP Address Reservation • Multi-IP Interfaces • Multi-Net DHCP | |
| IPv6 | StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode | |
| VLAN | 802.1Q VLAN | |
| IPTV | IGMP v2/v3 Proxy, Custom Mode, Bridge Mode | |
| Advanced Features | ||
| Advanced Routing | • Static Routing • Policy Routing • RIP*5 • OSPF*5 | |
| Bandwidth Control | IP-Based Bandwidth Control | |
| Load Balance | • Intelligent Load Balance • Application Optimized Routing • Link Backup(Timing, Failover) • Online Detection | |
| NAT | • One-to-One NAT • Multi-Net NAT • Virtual Server • Port Triggering*5 • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG • UPnP | |
| Session Limit | IP-Based Session Limit | |
| VPN | ||
| GRE | Only in Standalone Mode | |
| SSL VPN | 50 Tunnels | |
| IPsec VPN | • 100 IPSec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm • IPsec Failover • IKE v1/v2 • MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS) | |
| PPTP VPN | • PPTP VPN Server • PPTP VPN Client (10)*6 • 50 Tunnels • PPTP with MPPE Encryption | |
| L2TP VPN |
| |
| OpenVPN | • OpenVPN Server • OpenVPN Client (5)*6 • 55 OpenVPN Tunnels • "Certificate + Account" Mode • Full Mode | |
| WireGuard VPN | Yes | |
| Authentication | ||
| Web Authentication | • No Authentication • Simple Password • Hotspot (Local User / Voucher*6 / SMS*6 / Radius*6) • External Radius Sever • External Portal Sever*6 • LDAP | |
| Management Features | ||
| Omada App | Yes | |
| Centralised Management | • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller | |
| Cloud Access | Yes. Require the use of Omada Controller. | |
| Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customisation) | |
| Maintenance |
| |
| Zero-Touch Provisioning | Yes. Require the use of Omada Controller. | |
| Management Features |
| |
| Other | ||
| Network Services Enabled by Default | Web Server Manage and configure device through web (HTTP/HTTPS) • Port: 80/443 Protocol: TCP _____________________________________________________ TDP Server Device discovery • Port: 20003 Protocol: UDP _____________________________________________________ VOIP Server Monitor SIP messages • Port: 5060 Protocol: UDP _____________________________________________________ DHCP Server Handle DHCP packets • Port: 67 Protocol: UDP _____________________________________________________ DNS Handle DNS packets • Port: 53 Protocol: TCP/UDP | |
| Others | ||
| Certification | CE, RoHS | |
| Package Content | • DR3650v-4G • Power Adapter • Ethernet Cable • Phone Cable • Rubber Feet, • SIM Card Eject Pin • Quick Installation Guide | |
| System Requirements |
| |
| Environment | • Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F) • Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F) • Operating Humidity: 10% to 90% non-condensing • Storage Humidity: 5% to 90% non-condensing | |
*1Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and coverage are not guaranteed and will vary.
*2Maximum wired signal rates are the physical rates. Actual data throughput is not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors.
*3Omada Mesh Technology requires the use of EAPs that support mesh functionality. Please refer to https://www.tp-link.com/en/omada-mesh/product-list/ to confirm which Omada EAPs are compatible with Omada Mesh. Additionally, ER706W also supports standalone Mesh. Please refer to https://www.tp-link.com/en/standalonemesh/product-list/ to confirm the models that support standalone Mesh.
*4Use of WiFi 6 (802.11ax) and its features, including OFDMA, HE160, and 1024-QAM, require clients to support the corresponding features. The 160 MHz bandwidth is only available on the 5 GHz band. It may be unavailable in some regions/countries due to regulatory restrictions.
*5Supported only in Standalone Mode.
*6Supported only in Controller Mode.
*7The Omada cloud-based controller offers the Essentials version of cloud services for free, while the Standard version, which includes advenced features, requires a license.
※Performance data has been updated since software version 5.15.20. See DR3650v-4G | Omada 4G+ Cat6 AX3000 Wi-Fi 6 Gigabit Desktop DSL Gateway | Omada by TP-Link for details.
