Product Brand Not Configured QuWireless QuSpot Omni-Directional Antenna - AC50S
Product Brand Not Configured AC50S
£186.00
Availability:Awaiting Date from Manufacturer
Linitx Quick Code # 18028
Manufacturer SKU: AC50S
| Quantity | 1+ | 10+ | 20+ | 50+ | 100+ | 250+ |
| Price | £155.00 EXC VAT | £153.45 EXC VAT | £151.90 EXC VAT | £149.58 EXC VAT | £147.25 EXC VAT | Call Us 01449 888000 |

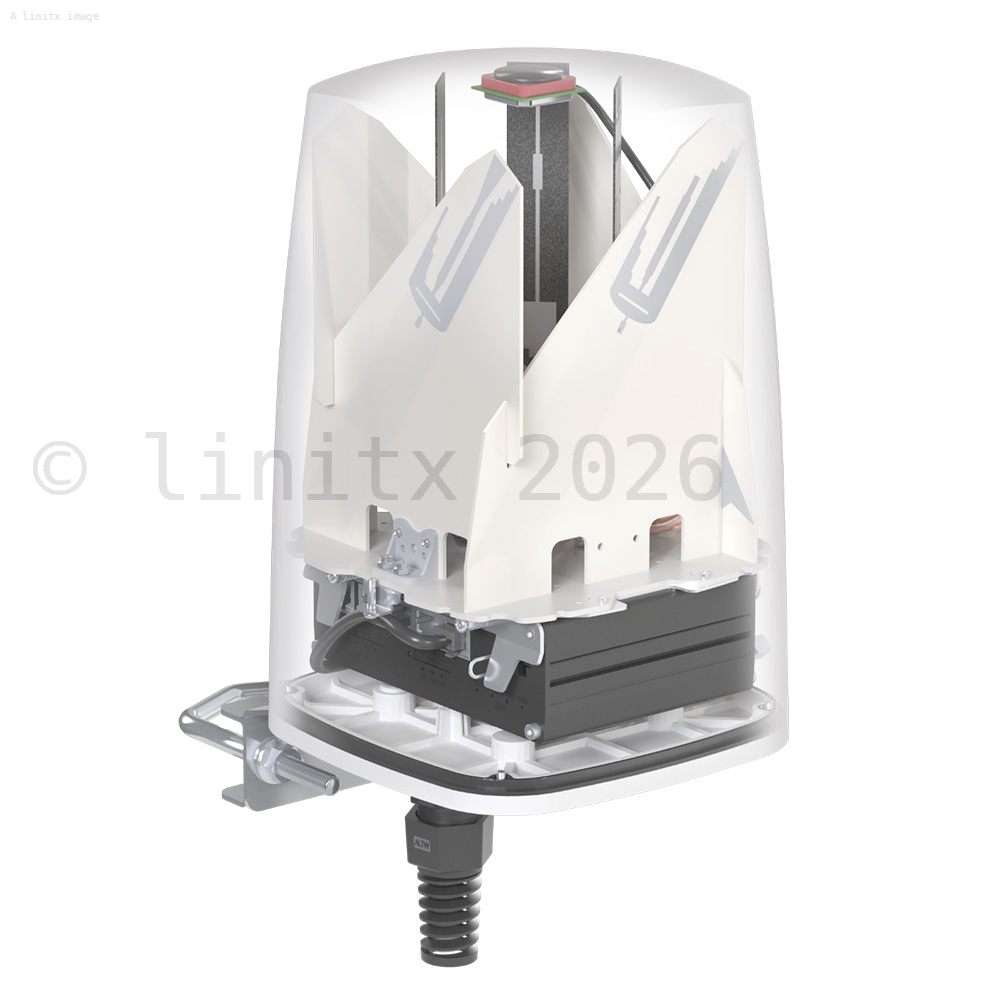

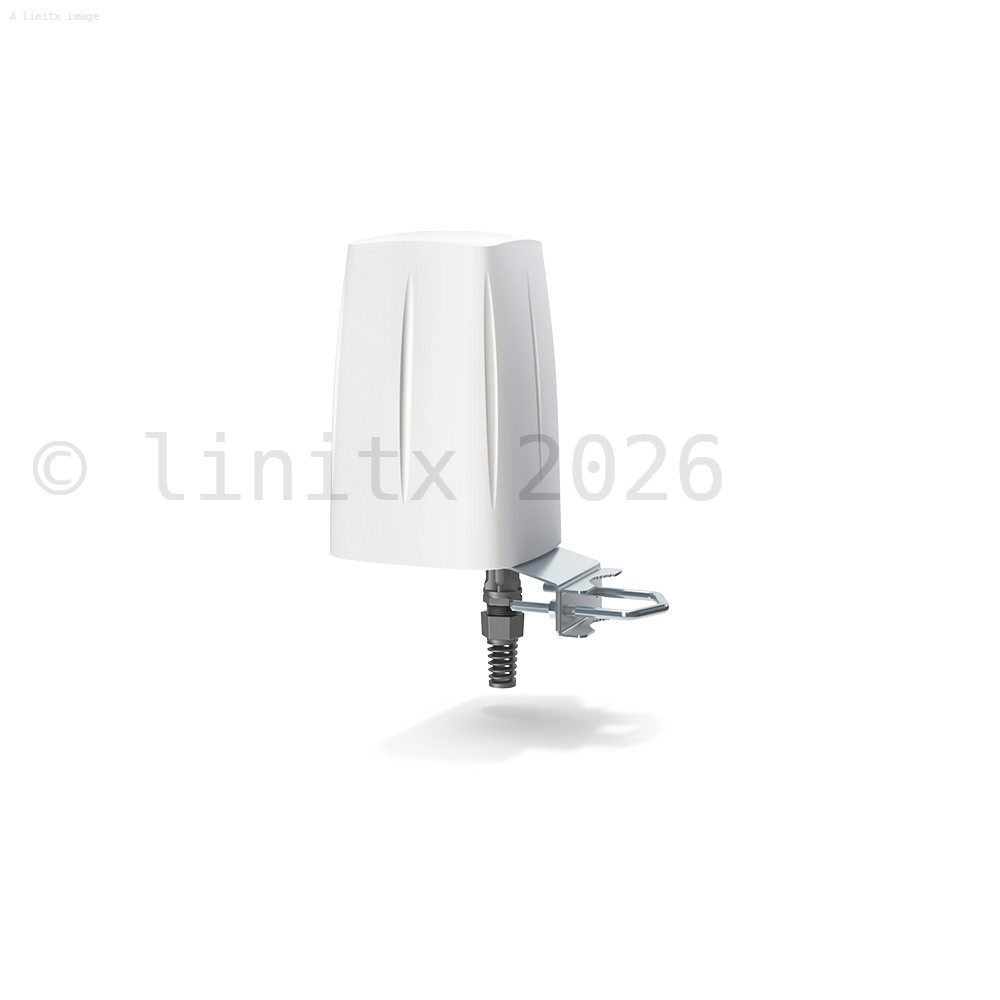

||||QuSpot for RUTC50 is an outdoor antenna designed to provide reliable wireless connectivity in a variety of environments. This product is an all in one solution that integrates a high gain omnidirectional 5G and Wi Fi antennas with RUTC50 into a single IP67 enclosure. Such integration allows implementation of new outdoor RUTC50 solutions
QuSpot for RUTC50 is an ideal solution for outdoor wireless connectivity in moving applications such as transportation, yachting, boats and camping but also city centres with high signal density.
This Antenna works in any weather conditions due to its IP67 Rated enclosure ensuring that the router inside is safely protected against the elements. This means no worries while travelling regardless of your destination.

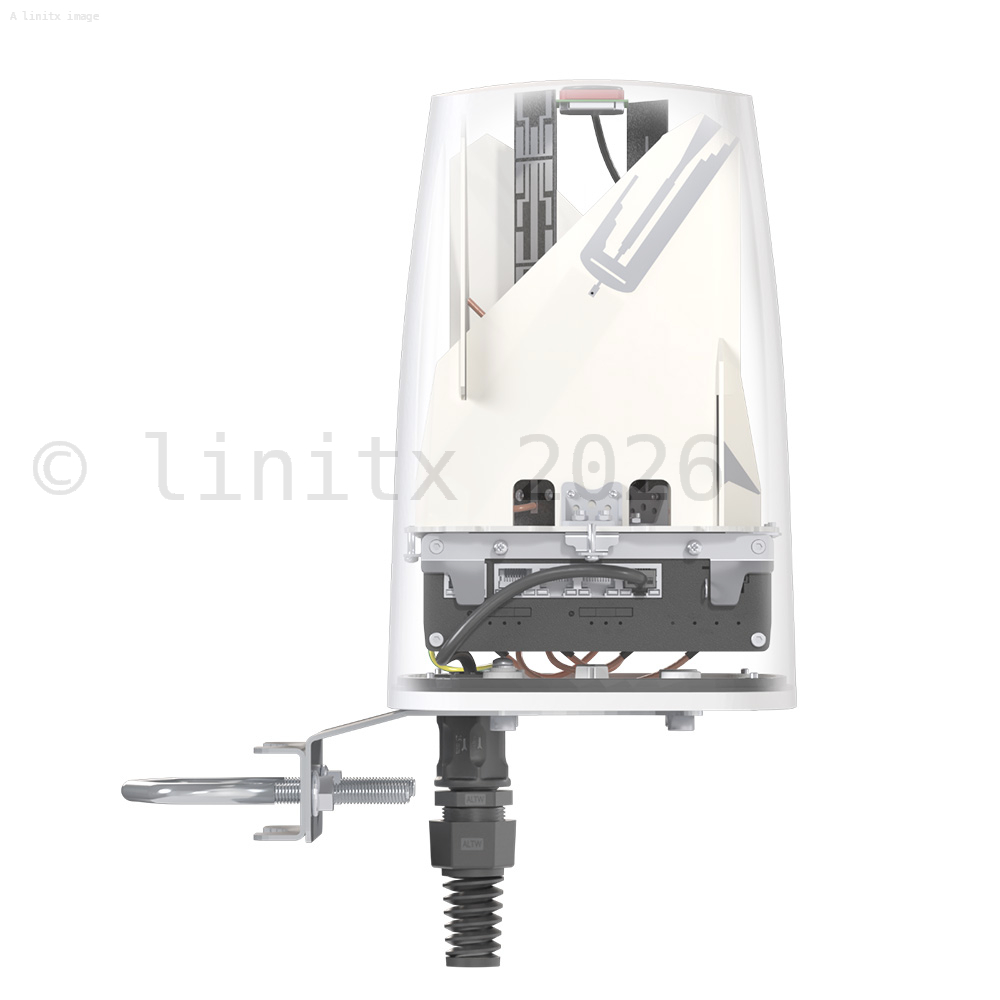

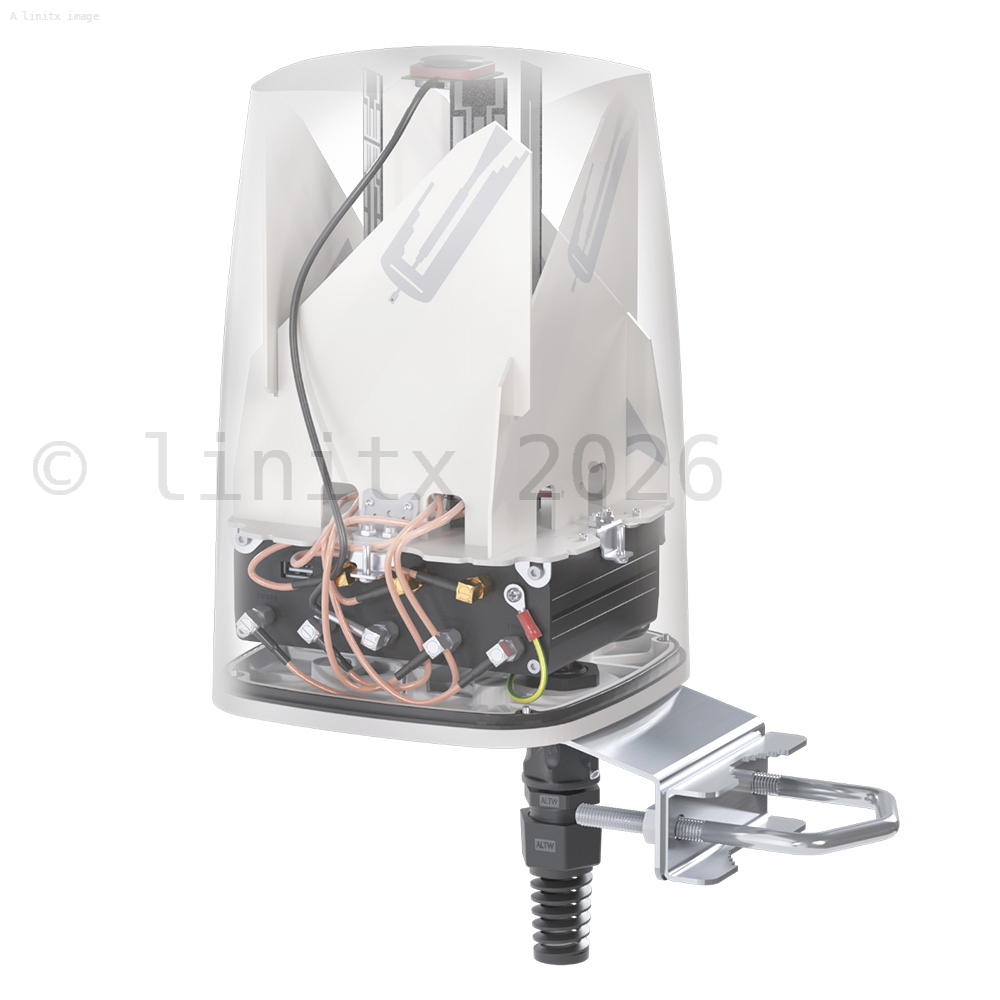

Moreover, these units have been developed to perfectly fit the router inside and even have passive PoE support.
| 5G Antenna Specification | |
|---|---|
| FREQUENCY | 617 - 960 MHz 1.7 - 2.7 GHz 3.3 - 4.3 GHz |
| GAIN | 617 - 960 MHz : 2 dBi 1.7 - 2.7 GHz : 4 dBi 3.3 - 4.3 GHz : 4.5 dBi |
| SUPPORTED LTE BANDS | 1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, 1067, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, n77, n78, n80, n81, n82, n83, n84, n86, n89, n90, n95, n97, n98, n100, n101 |
SUPPORTED 5G BANDS | n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n48, n53, n65, n66, n67, n71, n77, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n256 |
| VSWR | <2.00, max <2.50 |
| BEAMWIDTH | 360°/25° ±5° |
| POLARIZATION | Vertical |
| IMPEDANCE | 50 Ω |
| CONNECTOR | 4x SMA |
| CABLE TYPE | RG316 |
| Wi-Fi Antenna Specification | |
| FREQUENCY | 2.4 - 2.5 GHz 4.7 - 6 GHz |
| GAIN | 2.4 - 2.5 GHz : 6 dBi 4.7 - 6 GHz : 7.5 dBi |
| VSWR | <1.70, max <2.00 |
| BEAMWIDTH | 360°/25° ±5° |
POLARIZATION | Vertical |
| IMPEDANCE | 50 Ω |
| CONNECTOR | 3x RPSMA |
CABLE TYPE | RG316 |
GPS Active antenna specification | |
| FREQUENCY | 1.56 – 1.61 GHZ |
| VSWR | < 2 |
| GAIN | 3 dBi |
GAIN 3V | 28 dBi |
| DC POWER INPUT | 2.5 V ~ 6.5 V |
| POWER CONSUMPTION | 2.5-6.5mA |
| IMPEDANCE | 50 Ω |
| POLARIZATION | RHCP (right hand circularly polarized) |
| CONNECTOR | 1x SMA |
CABLE TYPE | RG174 |
| MATERIALS | ABS, aluminum, PTFE |
CONNECTOR TYPE | RJ45 |
INGRESS PROTECTION | IP67 |
| DIMENSIONS | 160 x 160 x 240 mm 6.3 x 6.3 x 9.45 inch |
| WEIGHT | 1.5 kg 3.31 lbs |
| OPERATING TEMPERATURE | From -40°C to 75°C From -40°F to 167°F |
| MAST DIAMETER | 40-60 mm 1.57-2.36 inch |
- 1x AC50S
- 1x Pole Mounting Kit
- 1x QuRJ45
- 1x 8mm Wrench
- 4x M6 x 10
- 2x M8
- 4x 3.1 x 12
- 4x Washer
