TP-Link Omada Fusion 2.5G Gateway
TP-Link Fusion 2.5G
||||| Overview | ||
|---|---|---|
| Built-In Omada Applications | Network Application | |
| Built-In Omada OS Applications |
| |
| Managed Omada Devices | Recommended for up to 30 devices | |
| Client Capacity | Recommended for up to 300 connected clients | |

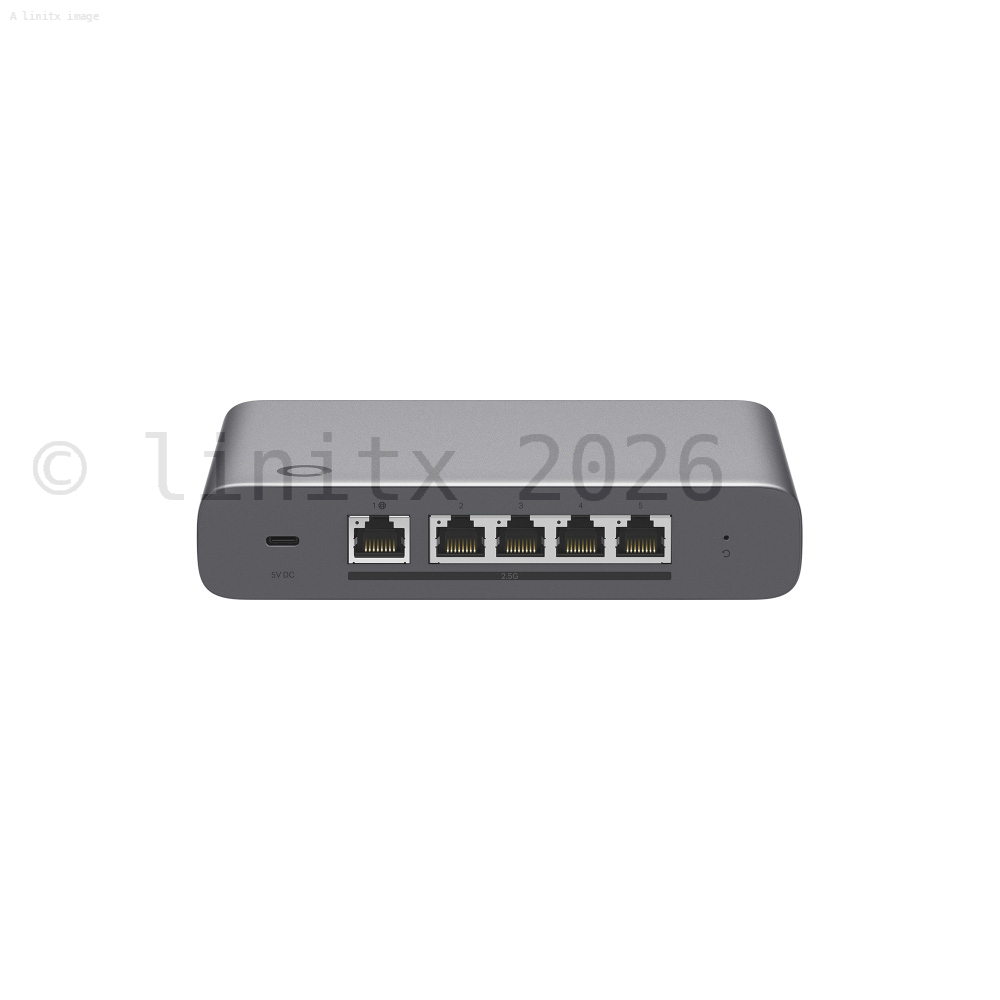

| Interface | • 1× 2.5G RJ45 WAN port • 4× 2.5G RJ45 LAN/WAN ports • Up to 4 simultaneous WAN ports | |
| IPS Throughput |
| |
| Site-to-Site VPN Throughput | 1,023 Mbps† | |
| Management | Cloud, local, and Omada App management | |
| Mounting | • Desktop • Wall-mount (magnetic-mount plate sold separately) • Rack-mount (rackmount kit sold separately) | |
| Dimensions | 6.3 × 5.12 × 1.24 in (160 × 130 × 31.5 mm) | |
| Built-In Omada Controller | ||
| Cloud Access | √ | |
| Local Management | √ | |
| Omada App | √ | |
| Multi-Site Management | Via the Omada Cloud Management Platform | |
| Restore & Backup | √ | |
| Automatic Device Discovery | √ | |
| Network Topology | √ | |
| Dashboard | √ | |
| Device List / Client List | √ | |
| Logs / Alerts / Events | √ | |
| Batch Firmware Upgrade | √ | |
| Health Monitoring | √ | |
| Internet Activity | √ | |
| Captive Portal | √ | |
| RADIUS / LDAP Authentication | √ | |
| 802.1X Authentication | √ | |
| OUI-Based VLAN | √ | |
| Diagnostics Tools | Ping Test, Packet Capture, Terminal, Cable Test, Interference Detection, Remote Access, IntelliRecover, Port Mirroring | |
| SNMP |
| |
| Security | ||
| IDS/IPS | √ | |
| DPI | √ | |
| Application-Based ACL | √ | |
| Content Filtering | √ | |
| Ad Blocker | √ | |
| Safe Search | √ | |
| DNS Security | v | |
| Firewall | √ | |
| Attack Defence | √ | |
| ARP Inspection | √ | |
| VPN & SD-WAN | ||
| Omada LightLink VPN | √ | |
| Site-to-Site VPN | WireGuard VPN / IPsec VPN | |
| VPN Server | WireGuard VPN / OpenVPN / IPsec VPN / SSL VPN / L2TP VPN / PPTP VPN | |
| VPN Client |
| |
| SD-WAN | Full Mesh Mode | |
| VPN Throughput | • Omada LightLink VPN: 527 Mbps • IPsec VPN: 1,023 Mbps • WireGuard VPN: 605 Mbps • OpenVPN: 223 Mbps • L2TP VPN: 892 Mbps • PPTP VPN: 193 Mbps • SSL VPN: 250 Mbps | |
| Networking | ||
| WAN Connection |
| |
| Multi-WAN Failover & Load Balancing | √ | |
| DHCP Server | √ | |
| VLAN Segmentation | √ | |
| Bandwidth Control | √ | |
| QoS | √ | |
| Static Routing | √ | |
| Policy Routing | √ | |
| NAT |
| |
| Dynamic DNS | TP-Link DDNS, 3rd-party DDNS, custom DDNS | |
| IPv6 |
| |
| Bonjour / mDNS | √ | |
| IGMP v2/v3 Proxy | √ | |
| Hardware | ||
| Touchscreen | 2.51-inch colour LCM touchscreen | |
| Button | Reset button | |
| Memory | 2 GB DDR4 | |
| Power Supply | USB-C power adapter, 100–240 V AC, 50/60 Hz input, 5 V DC / 3 A output | |
| Max Power Consumption | 8.18 W, with power adapter | |
| Enclosure | Polycarbonate | |
| LED | Ethernet | |
| Fan | Fanless | |
| Net Weight | 510g | |
| Surge Protection | 4 kV surge protection | |
| ESD Protection |
| |
| Onboarding | Bluetooth or Ethernet | |
| Certifications | CE, FCC, RoHS | |
| Environment | • Operating Temperature: 14 °F to 104 °F (-10 °C to 40 °C) • Storage Temperature: -22 °F to 158 °F (-30 °C to 70 °C) • Operating Humidity: 10% to 90% RH, non-condensing • Storage Humidity: 5% to 90% RH, non-condensing | |
† Performance data is based on IPsec VPN.
There is no box content detail for this product yet.
There are no datasheets for this product yet.
