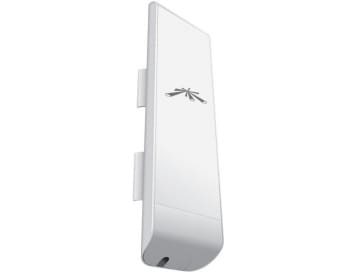

Ubiquiti airMAX M2 NanoStation - NSM2

Ubiquiti NanoStation M2: 2.4GHz Hi Power 2x2 MIMO AirMax TDMA Station. The original NanoStation set the bar for the world's first low-cost and efficiently designed outdoor broadband CPE. The new NanoStation M and NanoStation Loco M take the same concept to the future with new redesigned sleek and elegant form-factors.

150+ Mpbs real outdoor throughput and up to 15km+ range. Featuring 2x2 MIMO technology, the new NanoStation links significantly faster and farther than ever before. New antenna array designs featuring 16dBi dual-polarity gain at 5GHz and 11dBi dual-polarity 11dBi at 2.4GHz. Both with optimized cross-polarity isolation and in a compact form-factor. Secondary ethernet port with software enabled POE output for seamless IP Video integration. Remote hardware reset circuitry of NanoStation M allows for device to be reset remotely from power supply location. In addition, any NanoStation can easily become 802.3af 48V compliant through use of Instant 802.3af adapter.

Performance Breakthrough : 150+ Mbps real outdoor throughput and up to 15km+ range. Featuring 2x2 MIMO technology, the new NanoStation links significantly faster and farther than ever before.

New Leading-Edge Industrial Design: The original NanoStation set the bar for the world's first low-cost and efficiently designed outdoor broadband CPE. The new NanoStation M and NanoStation Loco M take the same concept to the future with new redesigned sleek and elegant form-factors.

Next-Gen Antenna Design: New antenna array designs featuring 11dBi dual-polarity 11dBi at 2.4GHz with optimized cross-polarity isolation and in a compact form-factor.

Dual Ethernet Connectivity: The New NanoStation M provides a secondary ethernet port with software enabled POE output for seamless IP Video integration.

Intelligent POE: Remote hardware reset circuitry of NanoStation M allows for device to be reset remotely from power supply location. In addition, any NanoStation can easily become 802.3af 48V compliant through use of Ubiquiti's Instant 802.3af adapter.

AirOS: Version 5 of Ubiquiti's AirOS builds upon the market leading intuitive user-interface loaded with advanced wireless configurations and routing functionality.

Download the Datasheet here

See our Blog Entry here for more Setup details

• Processor Specs: Atheros MIPS 24KC, 400MHz
• Memory Information: 32MB SDRAM, 8MB Flash
• Networking Interface: 2 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet Interface
• Wireless Approvals: FCC Part 15.247, IC RS210, CE
• RoHS Compliance: YES
• Enclosure Size: 29.4 cm x 8 cm x 3cm
• Weight: 0.4kg
• Enclosure Characteristics: Outdoor UV Stabalized Plastic
• Mounting Kit: Pole Mounting Kit included
• Max Power Consumption: 8 Watts
• Power Supply: 24V/0.5A surge portection integrated POE adapter included
• Power Method: Passive Power over Ethernet (pairs 4,5+; 7,8 return)
• Operating Temperature: -30C to +80C
• Operating Humidity: 5 to 95% Condensing
• Shock and Vibration: ETSI300-019-1.4
• Frequency Range: 2.32-2.55 GHz
• Gain: 10.4-11.2 dBi
• Polarization: Dual Linear
• Cross-pol Isolation: 23dB minimum
• Max VSWR: 1.6:1
• H-pol Beamwidth: 55 deg.
• V-pol Beamwidth: 53 deg.
• Elevation Beamwidth: 27 deg.

• NanoStation​ M2
• Zip Tie
• PoE (24V, 0.5A) with Mounting Bracket
• UK Power Cord
