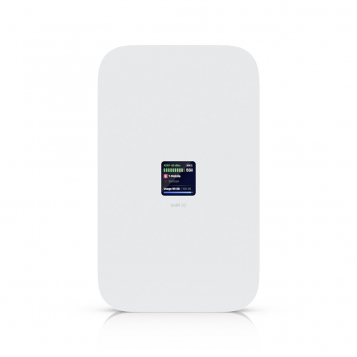

Ubiquiti UniFi 5G Max - U5G-Max
Ubiquiti U5G-Max
£377.99
Availability:Pre-Order Available
Linitx Quick Code # 18448
Manufacturer SKU: U5G-Max
Manufacturer: Ubiquiti Inc
||||Ubiquiti UniFi 5G Max (Indoor) - U5G-Max
At a glance:
- Indoor 5G Mobile Network Receiver
- UniFi Gateway Virtual WAN
- (2) Nano-SIM card slots (Slot 2 SIM/eSIM)
- 2.5 GbE, PoE in RJ45 port
- (4) Embedded Cellular Antennas
- Table stand, wall or window mounting
- Requires UniFi Network version 10.0.162 or later
The UniFi 5G Max is an indoor high-performance 5G cellular modem built to integrate seamlessly into any UniFi deployment, delivering up to 3.4 Gbps download speed and robust connectivity for homes or businesses seeking reliable backup or primary internet.
This modem offers flexible dual-SIM support featuring two nano-SIM slots plus eSIM capability, allowing you to combine a physical SIM and an eSIM or rely on one SIM as backup in Dual SIM Single Standby (DSSS) mode for automatic failover if the primary network drops.
It connects via a 2.5 GbE RJ45 port, pairing fast cellular throughput with wired reliability and can even be powered through PoE, eliminating the need for a nearby power outlet and enabling installation in locations where power access is limited.
Designed for easy set up, the 5G Max automatically adopts into your UniFi network once plugged into any UniFi PoE port, making setup straightforward and hassle free. Its compact and modern enclosure makes it an ideal choice to bring high-speed, fallback-ready connectivity to your existing network infrastructure whether you’re looking to add resilience to a primary broadband connection or use it as a standalone cellular gateway.
| Overview | |
|---|---|
| Dimensions | 180 x 109 x 33.8 mm |
| Networking Interface | (1) 2.5 GbE RJ45 port 5G NR and LTE radio |
| SIM | (1) Nano SIM
(1) Nano-SIM or eSIM |
| PoE Interface | (1) PoE input |
| Mounting | Desktop stand, wall, window mount (Included) |
| Tamper Resistance | IK04 |
| Mechanical | |
| Weight | Device: 410 g (14.5 oz)
Stand: 215 g (7.6 oz) Wall mount: 7.6 g (0.3 oz) Window mount: 20 g (0.7 oz) |
| Enclosure Material | Polycarbonate, aluminium alloy |
| Mount Material | Polycarbonate, silicone rubber |
| Hardware | |
| Management | Ethernet |
5G NR Category Frequency Bands Max. TX Power | 5G NR n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n71, n75, n76, n77, n78, n79 HPUE power class 2: 26 dBm |
4G LTE Frequency Bands Max. TX Power | B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71 HPUE power class 2: 25 dBm |
3G UMTS Frequency Bands | B1, B2, B4, B5, B8, B19 |
Peak Data Speed 5G NSA 5G SA 4G LTE | Downlink 3.4 Gbps
Uplink 560 Mbps Downlink 1.8 Gbps
Uplink 650 Mbps Downlink 1.6 Gbps
Uplink 210 Mbps |
Antennas Type | (4) Embedded cellular antennas |
| Max. Power Consumption | 14.5W |
| Power Method | PoE |
| Display | 1.3" touchscreen |
| Buttons | (1) Factory-reset |
| Ambient Operating Temperature | 0 to 40 °C (32 to 104 °F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, PTCRB, GCF |
| Software | |
Application Requirements UniFi Network | Version 10.0.162 and later |
- U5G-Max
- Desktop Stand
- Wall/Window Mount
