Ubiquiti UniFi Access G3 Reader (Black) - UA-G3-B

Ubiquiti UA-G3-B

Ubiquiti UniFi Access G3 Reader (Black) - UA-G3-B
Ubiquiti UniFi Access G3 Reader (Black) - UA-G3-B Main Image
Ubiquiti UniFi Access G3 Reader (Black) - UA-G3-B package contents
Ubiquiti UniFi Access G3 Reader (Black) - UA-G3-B product
box

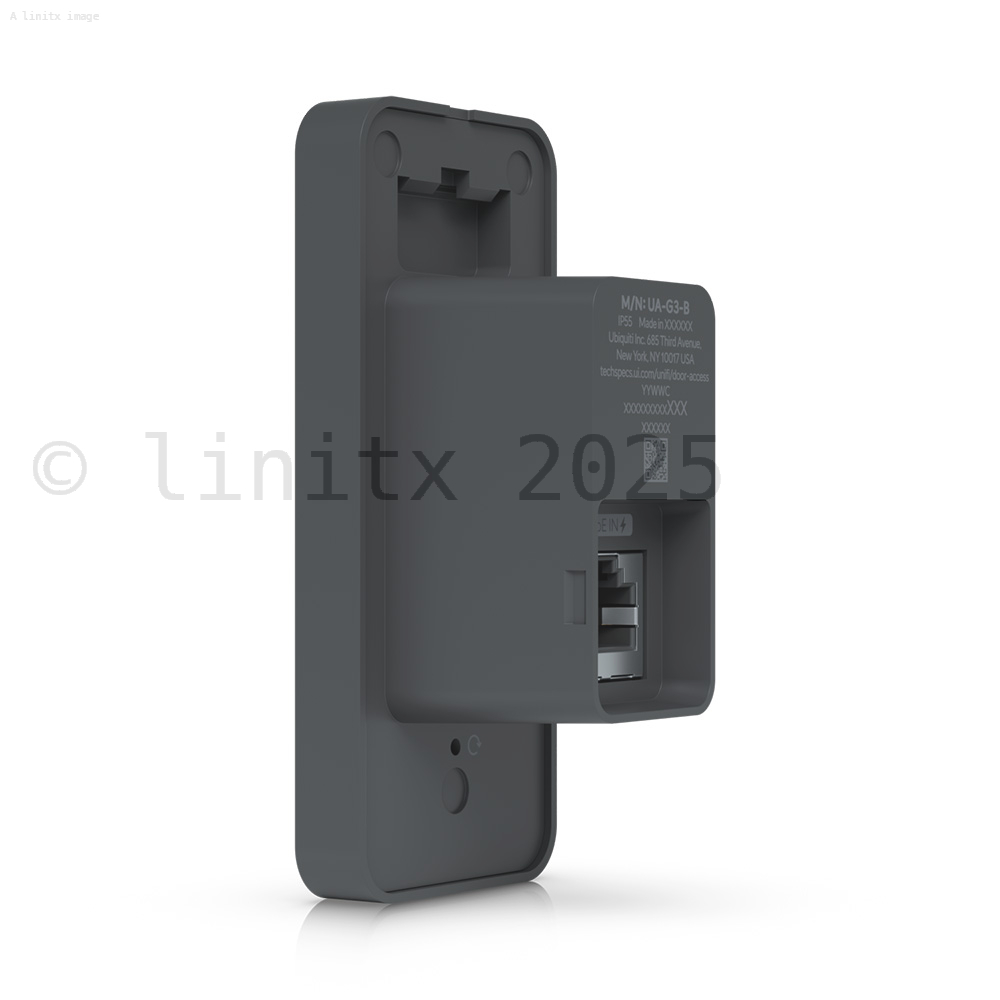

Ubiquiti UniFi Access G3 Reader (Black) - UA-G3-B inside view
Ubiquiti UniFi Access G3 Reader (Black) - UA-G3-B front of product
Ubiquiti UniFi Access G3 Reader (Black) - UA-G3-B rear of product
AWAITING STOCK

0 available Shipping today cut off.

Notify me
0 customer reviews:

£132.00


Choose from the following product options:

Extended Warranty  Extended warranty - covering hardware & software failure.

- +

Availability:Awaiting Date from Manufacturer

Linitx Quick Code # 18161 You can use the quick code in the search box

Manufacturer SKU: UA-G3-B

Manufacturer: Ubiquiti Inc


Quantity1+10+20+50+100+250+
Price£110.00 EXC VAT£108.90 EXC VAT£107.80 EXC VAT£106.15 EXC VAT£104.50 EXC VATCall Us 01449 888000
window dressing ||||

UniFi Access G3 Reader (Black) - UA-G3-B

Mechanical Specifications
Dimensions93 x 40 x 36.5 mm
Weight82g
Enclosure materialPolycarbonate, glass
Mounting material
Aluminium alloy
MountingIn wall, gang box
WeatherproofingIP55
Hardware Specifications
Networking interface(1) 10/100 MbE RJ45 port
ConnectivityBLE 4.1
NFC
Power methodPoE
UL 294 Power-limited Class 2 PSU
UL 60950-1/62368-1 LPS/PS2 PSU
Supported voltage range48V DC
Max. power consumption
5W
ESD/EMP protectionAir: ±15kV, contact: ±8kV
Sensors
Proximity sensor
Speaker

(1) 8 ohm, 0.7W

LEDsR/G/B/W
ButtonFactory reset
NFC frequency13.56 MHz
NFC read range< 30 mm
NFC technology
ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)
MIFARE Classic / MIFARE DESFIRE
Sony FeliCa™ (ID only)
NFC Forum tags T1T, T2T, T3T, T4T and T5T
ECP 2.0
Operating environmentOutdoor use
Ambient operating temperature-30 to 45° C
Ambient operating humidity5 to 90% noncondensing
Software information
The software version of a product can be checked at https://unifi.ui.com
UL 294 levelDestructive attack: Level I
Line security: Level I
Endurance: Level I
Standby power: Level I
UL 294 statementCompliance with IEEE 802.3 specifications was not verified as part of UL 294.
The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
PoE cabling requirementsCable 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.
The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm 2 ) for patch cords; 24 AWG (0.21 mm 2 ) for horizontal or riser cable.
CAN/ULC-60839-11-1 Grade
Grade assignment: I
CertificationsCE, FCC, IC, UL 294, CAN/ULC-60839-11-1


There is no box content detail for this product yet.
There are no reviews for this product yet.


Please note that links to other websites are beyond our control. We link in good faith and are not be responsible for their content.

UniFi Access G3 Reader Installation Guide
