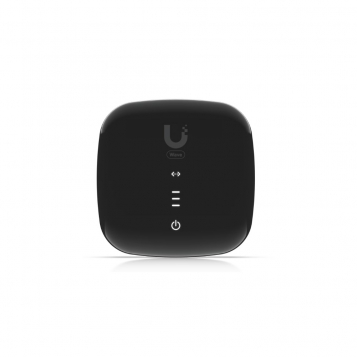

Ubiquiti WaveFiber GPON CPE Optical Network Unit 20 Pack - Wave-Fiber-ONU-5

Ubiquiti WaveFiber GPON CPE Optical Network Unit 5 Pack - Wave-Fiber-ONU-5

At a glance:

• WAN: (1) GPON Port (SC/APC, ITU-G.984)
• LAN: (1) 1/2.5 GbE RJ45 Port & 24V PoE-in (PoE Injector included)
• GPON Speeds: 1.2 Gbps uplink (TX), 2.5 Gbps downlink (RX) up to 20km
• Wavelength: TX 1310nm / RX 1490nm
• Mounting: Wallmountable (Indoor)
• Max. Power Consumption: 5W

The Ubiquiti WaveFiber ONU brings high speed GPON connectivity to your doorstep in a sleek and compact design. Leveraging ITU‑G.984 GPON standards, it delivers throughput with downstream speeds of up to 2.5 Gbps and upstream reaches of 1.2 Gbps over optical fibers stretching as far as 20 km. Built to satisfy both residential and business demands, this ONU transitions effortlessly from fibre to Ethernet via a versatile LAN port that boosts performance up to 2.5 GbE for power users.

Built with a tough yet lightweight polycarbonate shell that measures just 76.5 × 76.5 × 26.4 mm and weighs 78 g, it's designed for flexible deployment, whether desktop or wall‑mounted. Power is delivered over 24 V passive PoE, drawing less than 5 W, making installations simpler and cleaner by eliminating the need for a separate plug in adapter. Status LEDs offer clear visual feedback on power, PON signal strength, and LAN traffic.

Management integrates seamlessly into the UISP ecosystem using OMCI, and the unit enables remote provisioning, firmware updates, automatic laser shutdown upon fiber loss for enhanced protection, NAT routing, firewall, VLAN, and GEM port encryption for added security.

In short, the WaveFiber ONU packs enterprise grade fibre performance into a compact, versatile unit that combines speed, efficiency, security, and ease of management making it an ideal fit for modern fibre deployments.
