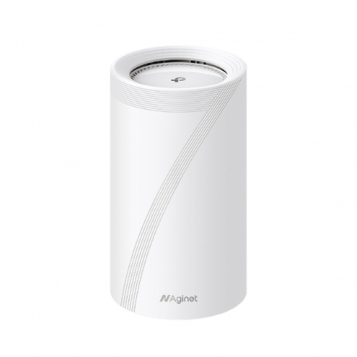

TP-Link Aginet BE19000 Whole Home Mesh WiFi System - HB810 (Single)
TP-Link Aginet HB810
£480.00
Availability:Awaiting Date from Manufacturer
Linitx Quick Code # 18070
Manufacturer SKU: HB810
Manufacturer: TP-Link Aginet
| Quantity | 1+ | 10+ | 20+ | 50+ | 100+ | 250+ |
| Price | £400.00 EXC VAT | £396.00 EXC VAT | £392.00 EXC VAT | £386.00 EXC VAT | £380.00 EXC VAT | Call Us 01449 888000 |
||||TP-Link Aginet HB810 BE19000 Whole Home Mesh WiFi System (Single Unit)
At a Glance:
- Tri-Band WiFi 7
- 10 Gbps Internet Access - 10GbE/SFP+ Combo
- Multi-Link Operation (MLO)
- Clear 320 MHz Channels
- Works on 6 GHz Band
- Enhanced Security: WPA3 encryption, Multi-SSID, and Parental Controls
- Wi-Fi CERTIFIED EasyMesh: Experience strong, stable, and seamless wireless connections
- Easy Setup: Set up your mesh WiFi in minutes with the powerful Aginet app
- Remote Management: TAUC cloud management, TR-069, TR-098, TR-181, TR-111, and TR-143
The TP-Link Aginet Home Mesh HB810 is an Whole Home Mesh WiFi System designed to provide seamless, high-speed internet coverage. This tri-band WiFi 7 system offers speeds up to 19 Gbps*, with support on 6 GHz band for delivering robust high-speed connections with minimal congestion.
The HB810 system is designed to create a unified network across your home, automatically selecting the best connection as you move around. It also features enhanced security with WPA3 encryption, Multi-SSID, and Parental Controls for a safer online experience.
The TP-Link Aginet HB810 includes 1 x 10GbE LAN port + 2 x 2.5GbE LAN port + 1 x 10GbE/SFP+ Combo WAN/LAN port with supporting WAN/LAN auto-sensing, a reset button, and a WPS button. The system is compatible with Wi-Fi 7 standards and offers advanced features like MLO, QoS, SPI Firewall, and multiple SSIDs. It supports various management options including local management, TAUC cloud management, and TR-069 protocols.
| HARDWARE FEATURES | |
|---|---|
| Interface | 1× 10 GbE/SFP+ Combo WAN/LAN Port 1× 10 GbE LAN Port 2× 2.5 GbE LAN Ports 1× USB 3.0 Port *Per Unit 1 Port supports WAN/LAN auto-sensing |
| Button | Reset Button WPS Button |
| External Power Supply | 12 V ⎓ 5.0 A |
| Dimensions ( W x D x H ) | 5.04 × 5.04 × 9.29 in (128 × 128 × 236 mm) |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards |
Wi-Fi 7
IEEE 802.11be/ax 6 GHz IEEE 802.11be/ax/ac/n/a 5 GHz IEEE 802.11be/ax/n/g/b 2.4 GHz |
| Frequency | 2.4 GHz, 5 GHz, and 6 GHz |
| Signal Rate | BE19000 6 GHz: Up to 11520 Mbps (EHT320) 5 GHz: Up to 5760 Mbps (EHT160) 2.4 GHz: Up to 1376 Mbps (EHT40)* |
| Transmit Power | FCC: <30 dBm (2.4 GHz) <30 dBm(5 GHz) <30 dBm(6 GHz) CE: <20 dBm (2.4 GHz) <30 dBm (5 GHz) <23 dBm (6 GHz) |
| Wireless Security | WPA-PSK/WPA2-PSK/WPA3 Personal encryptions |
| Multi-SSID | 2× 6 GHz Multi-SSID 2× 5 GHz Multi-SSID 2× 2.4 GHz Multi-SSID |
| Mesh Technology | EasyMesh compatible and supports 802.11k/v/r |
| SOFTWARE FEATURES | |
|---|---|
| Quality of Service | WMM |
| WAN Type | Dynamic IP/Static IP/PPPoE |
| Management | Local management: WebGUI, Aginet app (for end users)
|
| Firewall Security | DoS, SPI Firewall, IP and MAC Address Binding |
| Protocols | IPv4 IPv6 |
| Advanced Features | Multi-Link Operation (MLO), 320 MHz Bandwidth, 4K-QAM, Multi-RU,OFDMA, MU-MIMO, Beamforming, BSS Color QoS (Quality of Service), Port Forwarding, CWMP Parental Controls, WiFi Schedule, Wireless Statistics, Guest Network, Band Steering, Airtime Fairness, Network Diagnostic, Traffic Statistic |
| Working Modes | Router Mode Access Point Mode |
| VPN | PPTP, OpenVPN, IPSec |
| OTHERS | |
|---|---|
| Smartphone/Tablet Requirements | Android 4.4 or later iOS 9.0 or later |
| Certifications | CE, FCC |
| Environment | Operating Temperature: 0℃–40℃ (32℉–104℉) Storage Temperature: -40℃–60℃ (-40℉–140℉) Operating Humidity: 10%–90% non-condensing Storage Humidity: 5%–90% non-condensing |
Please note that links to other websites are beyond our control. We link in good faith and are not be responsible for their content.
TP-Link Aginet HB810 Datasheet
