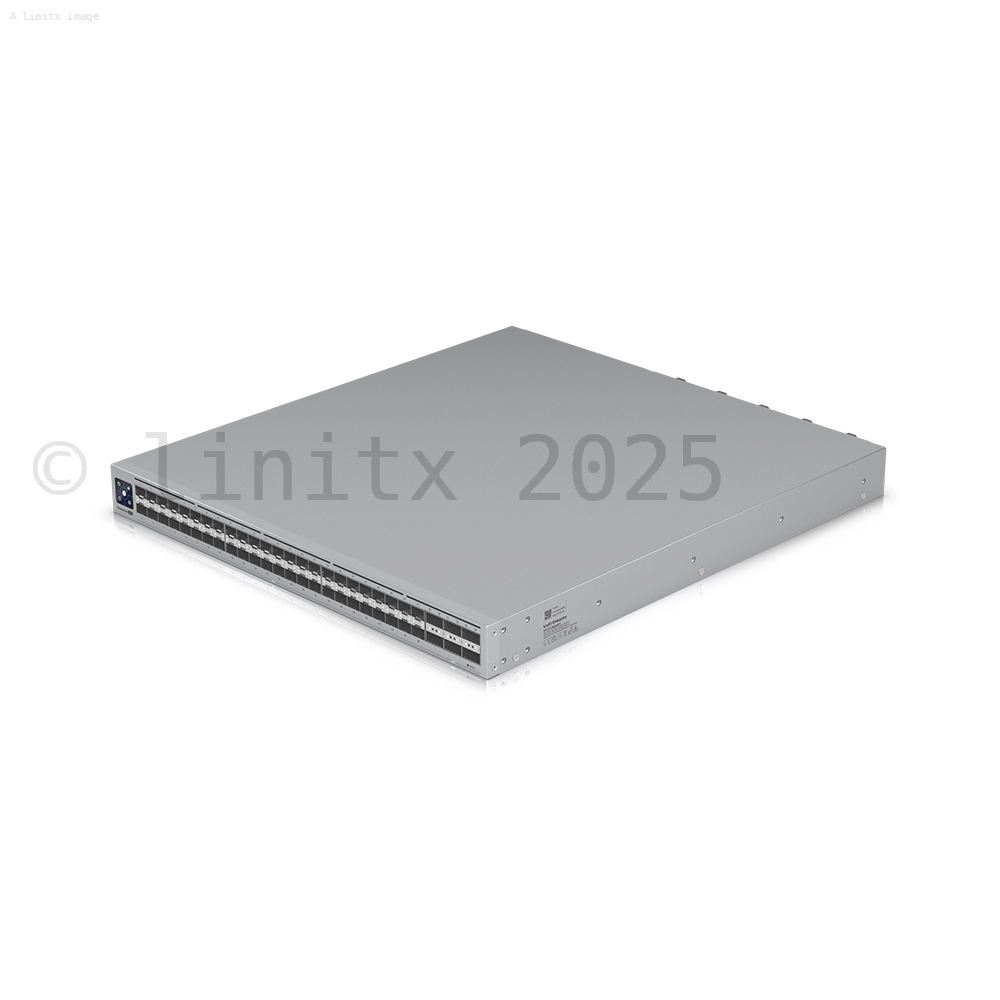

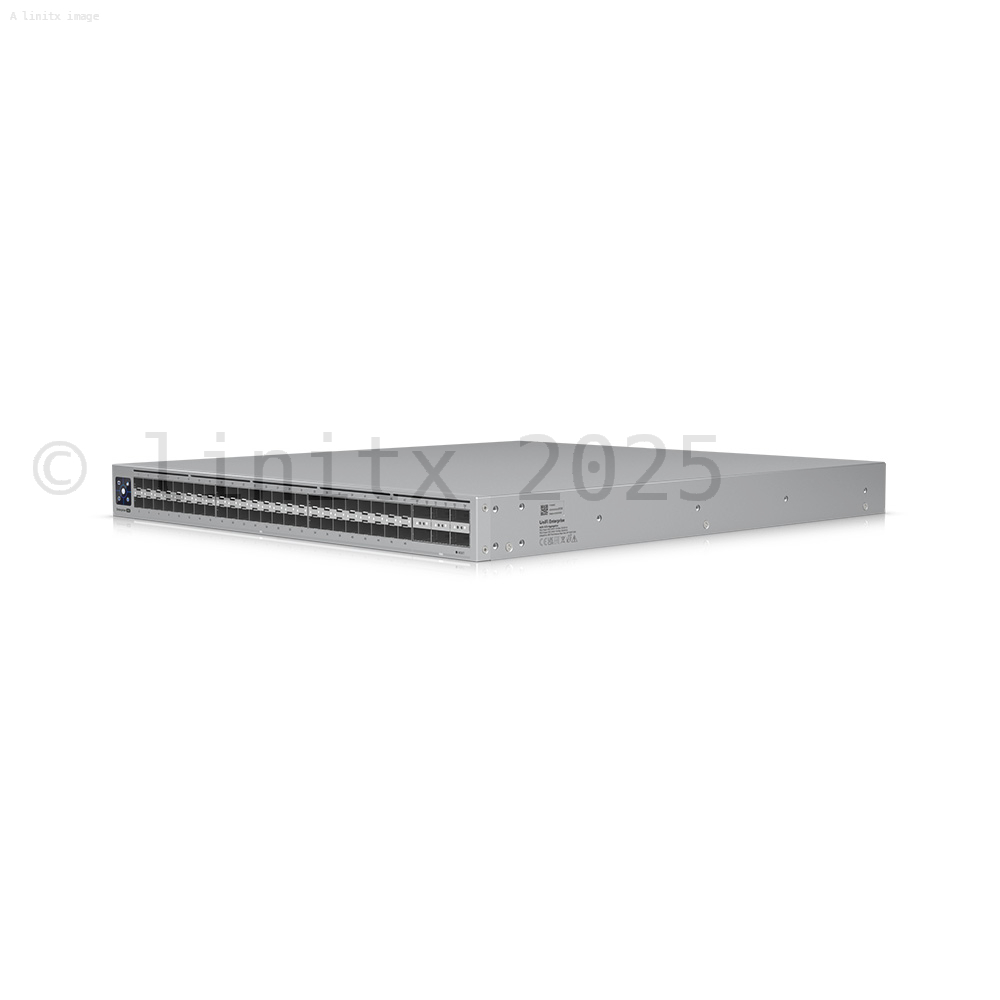

Ubiquiti Enterprise Campus Aggregation - ECS-Aggregation
Ubiquiti ECS-Aggregation
£3,671.99
Availability:Ordered on Demand
Linitx Quick Code # 18098
Manufacturer SKU: ECS-Aggregation
EAN: 0810084697139
Manufacturer: Ubiquiti Inc
||||Ubiquiti Enterprise Campus Aggregation - ECS-Aggregation
At a glance:

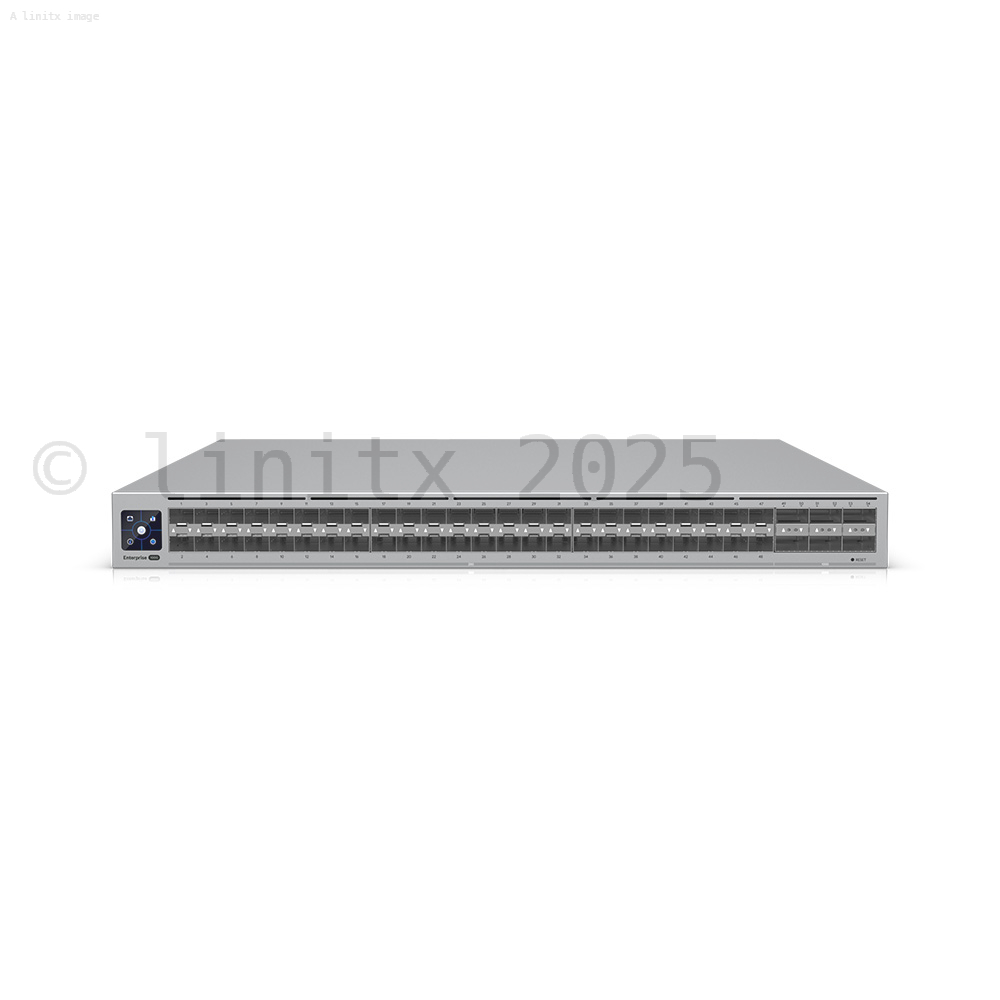

- 48 x 25G SFP28
- 6 x 100G QSFP28 ports
- Multi-Chassis Link Aggregation (MC-LAG) support*
- Layer 3 automatic failover (VRRP) support**
- BGP Dynamic Routing***

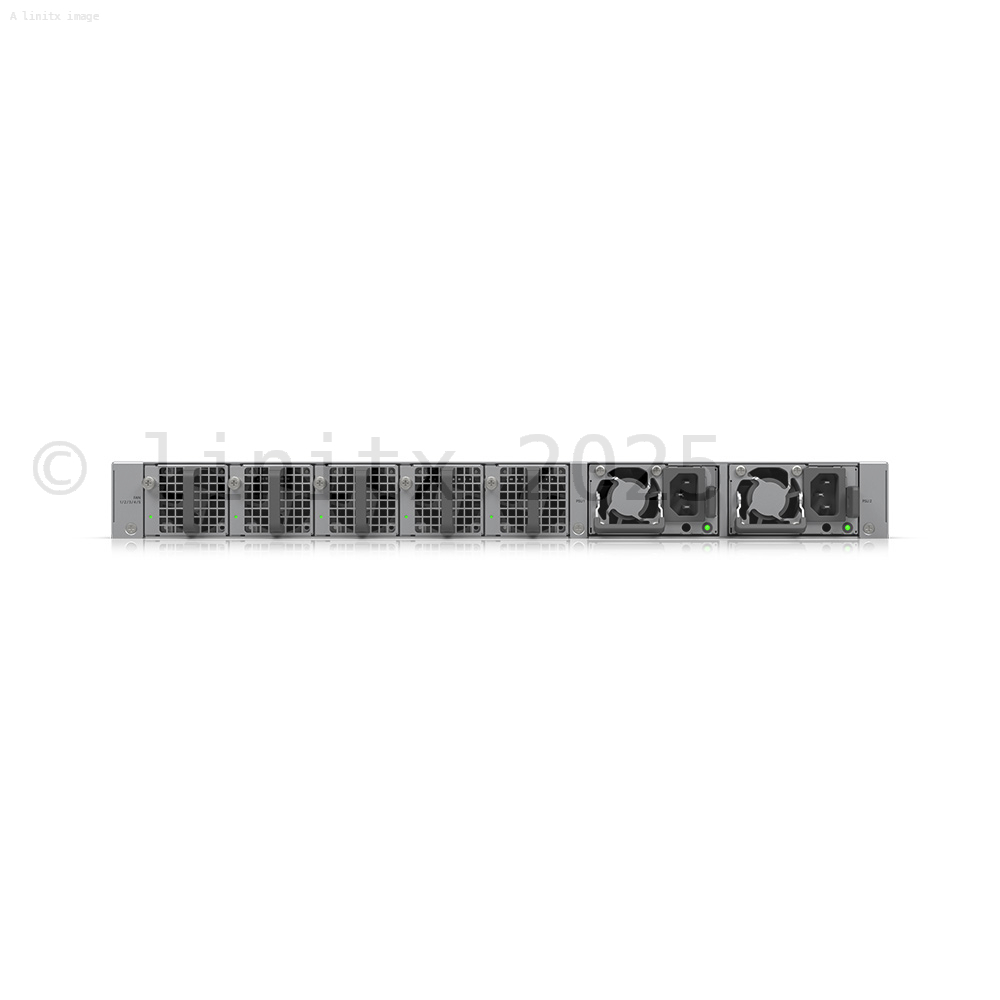

- 2 included hot-swappable power modules, with 1+1 redundancy
- 5 included hot-swappable fan modules, with 4+1 redundancy
The Ubiquiti Enterprise Campus Aggregation switch is a high-performance network switch designed to streamline and optimise your network infrastructure. Equipped with 24 10G SFP+ ports and two 25G SFP28 uplinks, it delivers exceptional data throughput and reliable connectivity, making it ideal for ISPs and enterprise environments.
*Must be paired with another Enterprise Campus Aggregation.
**Scheduled for the next UniFi Network Application release.
***OSPF support is scheduled for an upcoming UniFi Network Application release.
| Mechanical | ||
|---|---|---|
| Dimensions | 442.4 x 43.7 x 496 mm | |
| Weight | 9.9 kg | |
| Enclosure material | SGCC steel | |

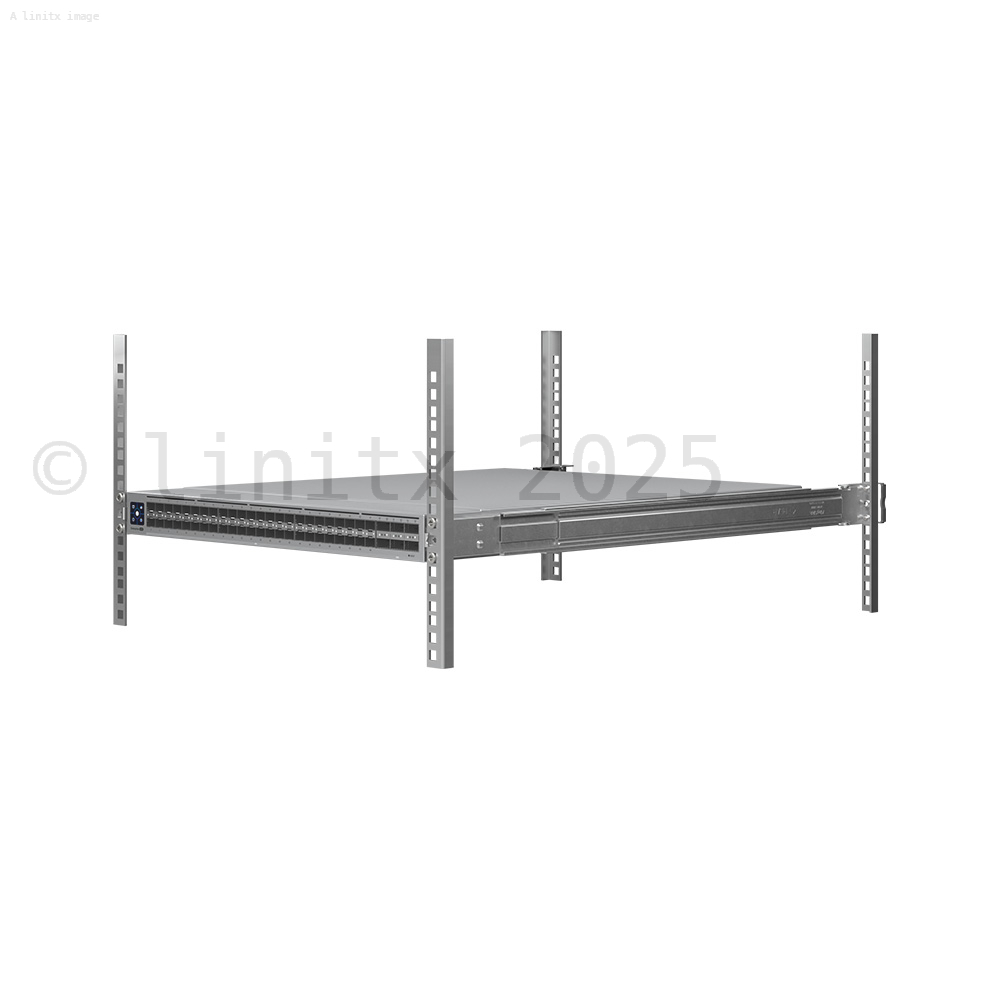

| Slide rails support | The rails support 482.6 mm four-post racks with square holes (9.5 x 9.5 mm) and posts depths ranging from 650 to 1,000 mm | |
| Hardware | ||
| Management interface | Ethernet In-Band | |
| Networking interface | (6) 100/40G QSFP28 ports (48) 25/10G SFP28 ports* 1 Gbps port speed is not supported. | |
| Total non-blocking throughput | 1.8 Tbps | |
| Switching capacity | 3.6 Tbps | |
| Forwarding rate | 2.3 Bpps | |
| Power method | (2) Universal input, 100—240V AC | |
| Power supply | (2) Hot-swappable AC/DC 550W power modules | |
| Supported voltage range | 100 - 240V AC | |
| Max. power consumption | 340W | |
| ESD/EMP protection | Air: ± 12kV, contact: ± 8kV | |
| Services |
| |
| LCM display | (1) 1.3" touchscreen | |
| Ambient operating temperature |
| |
| Ambient operating humidity | 10 to 95% noncondensing | |
| Certifications | CE, FCC, IC | |
| Switching Features | ||
| Layer 2 features |
| |
| Layer 3 features | DHCP for locally-managed networks DHCP relay Inter-VLAN routing between networks on same switch Static routing between local networks Automatic failover (VRRP)* *Support is scheduled for the next UniFi Network Application release. | |
| Etherlighting™ | ||
| SFP28/QSFP28 | Locating Speed/link Native VLAN/network | |
| LEDs | ||
| System | Status | |
| Application Requirements | ||
| UniFi Network | Version 8.5.6 and later | |
Package Contents:
- 1 x Enterprise Campus Aggregation (ECS-Aggregation)
- 2 x Hot-Swappable PSU's
- 5 x Hot-swappable Fan modules
- 2 x UK Power Cables (Placed in outer packaging)
- Mounting Accessories (Rack mounts, Screws etc.)
