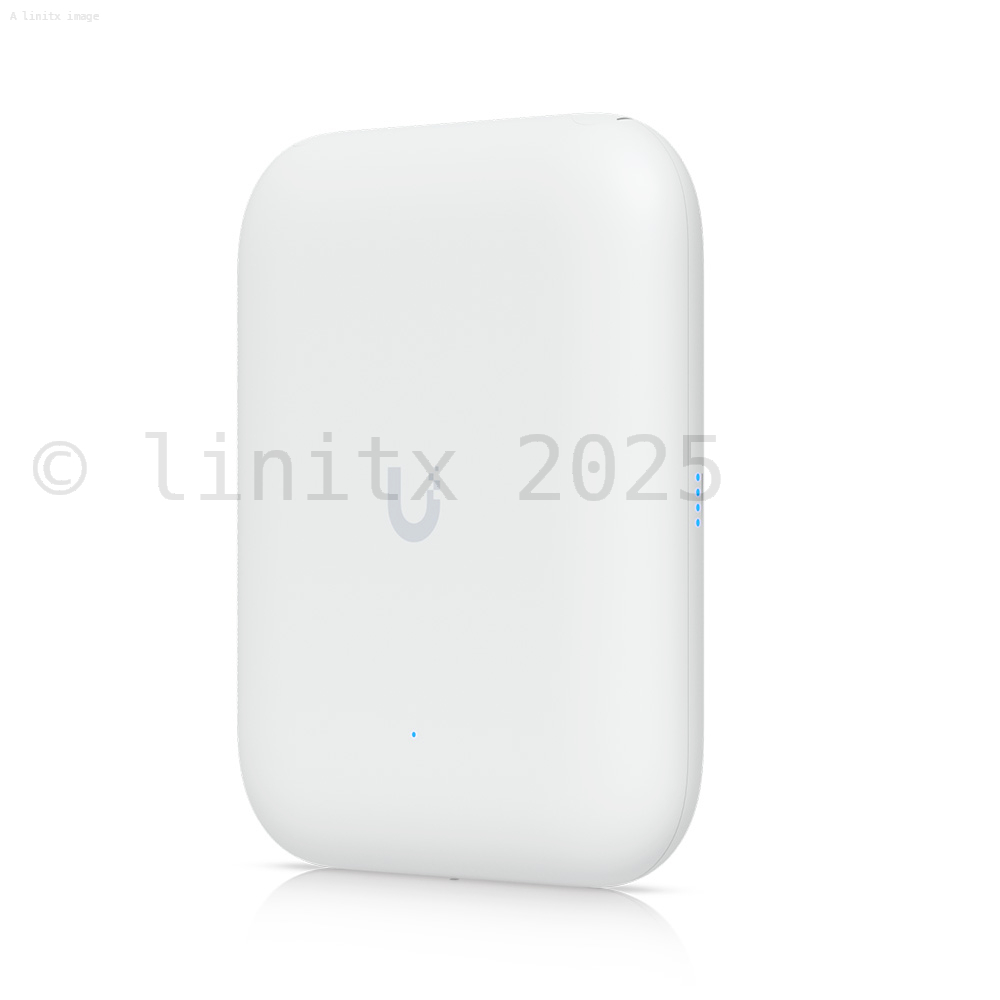

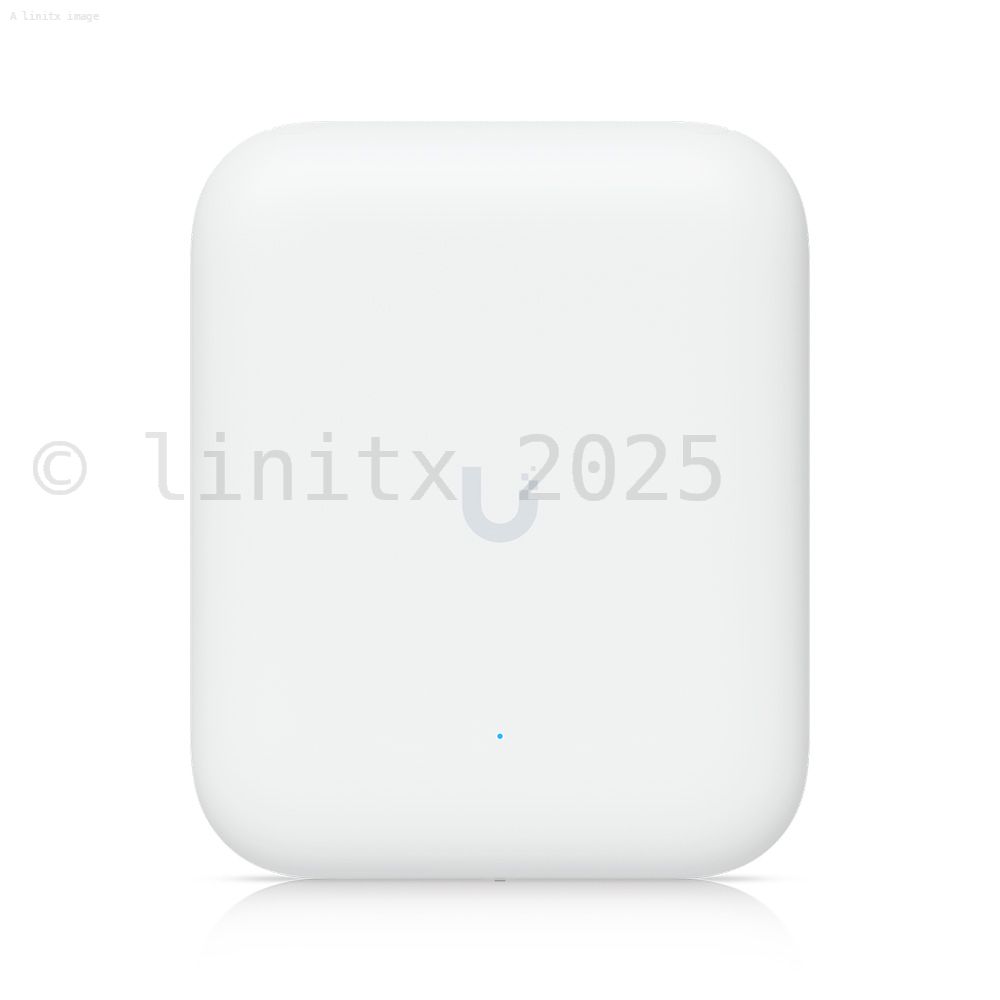

Ubiquiti U7 Pro Outdoor WiFi 7 Access Point - U7-Pro-Outdoor
Ubiquiti U7-Pro-Outdoor
£263.99
Availability:Awaiting Date from Manufacturer
Linitx Quick Code # 18156
Manufacturer SKU: U7-Pro-Outdoor
EAN: 810084698730
Manufacturer: Ubiquiti Inc
| Quantity | 1+ | 10+ | 20+ | 50+ | 100+ | 250+ |
| Price | £219.99 EXC VAT | £217.79 EXC VAT | £215.59 EXC VAT | £212.29 EXC VAT | £208.99 EXC VAT | Call Us 01449 888000 |
||||UniFi U7 Pro Outdoor WiFi 7 Access Point - U7-Pro-Outdoor
At a glance:
- WiFi 7 with 6 spatial streams
- Triband AP with 2.4Ghz, 5Ghz and 6GHz* radio
- 300+ connected devices
- Mesh signal LEDs
- 2.5Gb PoE+ Uplink port
- Wall & pole mounting plates included
- IPX6 or IP67 with additional cable-glad kit

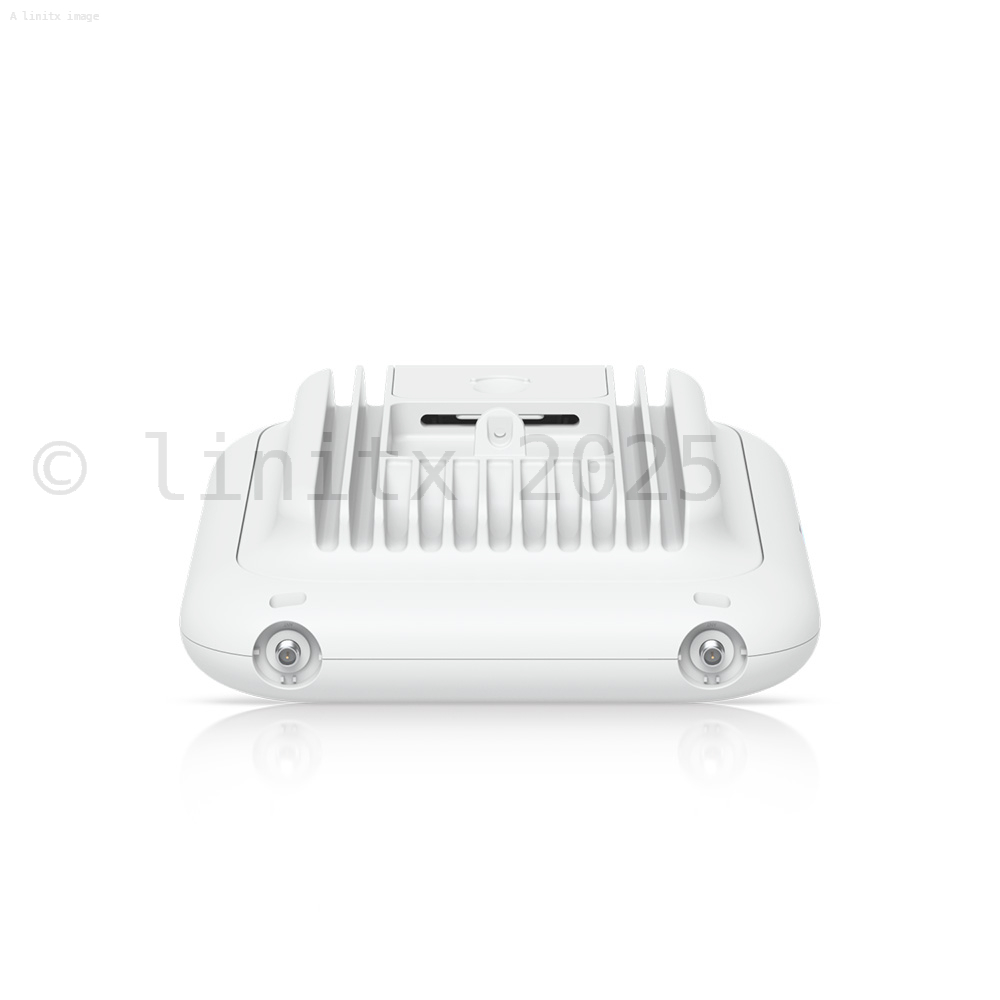

- 2x RSMA connectors for optional external external antennas.

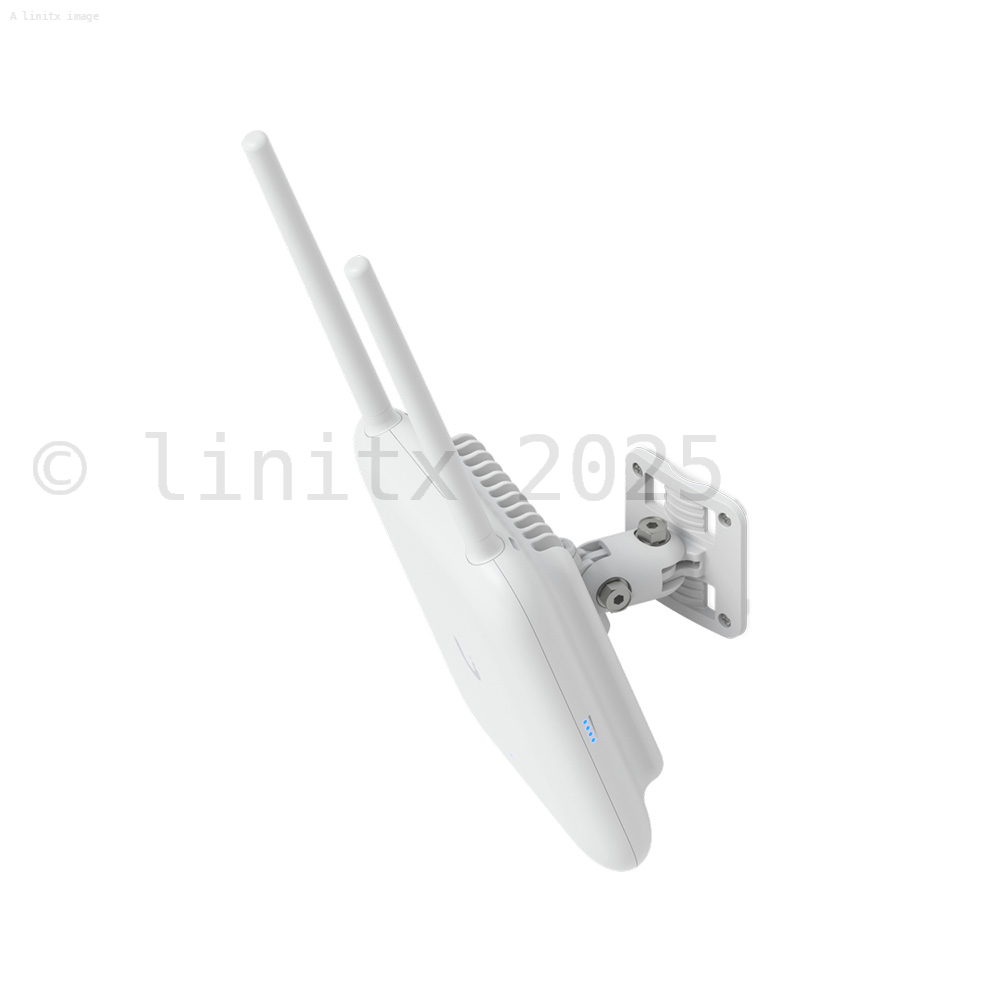

The Ubiquiti UniFi U7 Pro Outdoor is an all-weather, IPX6 or IP67-rated (with cable-gland door kit) WiFi 7 access point designed for outdoor environments. It features 2.4Ghz, 5GHz and 6GHz radios It features six spatial streams and an integrated directional super antenna to provide robust and high-speed wireless connectivity. The device comes with an articulation mounting bracket for flexible installation. The device comes also with external omni antennas should omni directional coverage be required.

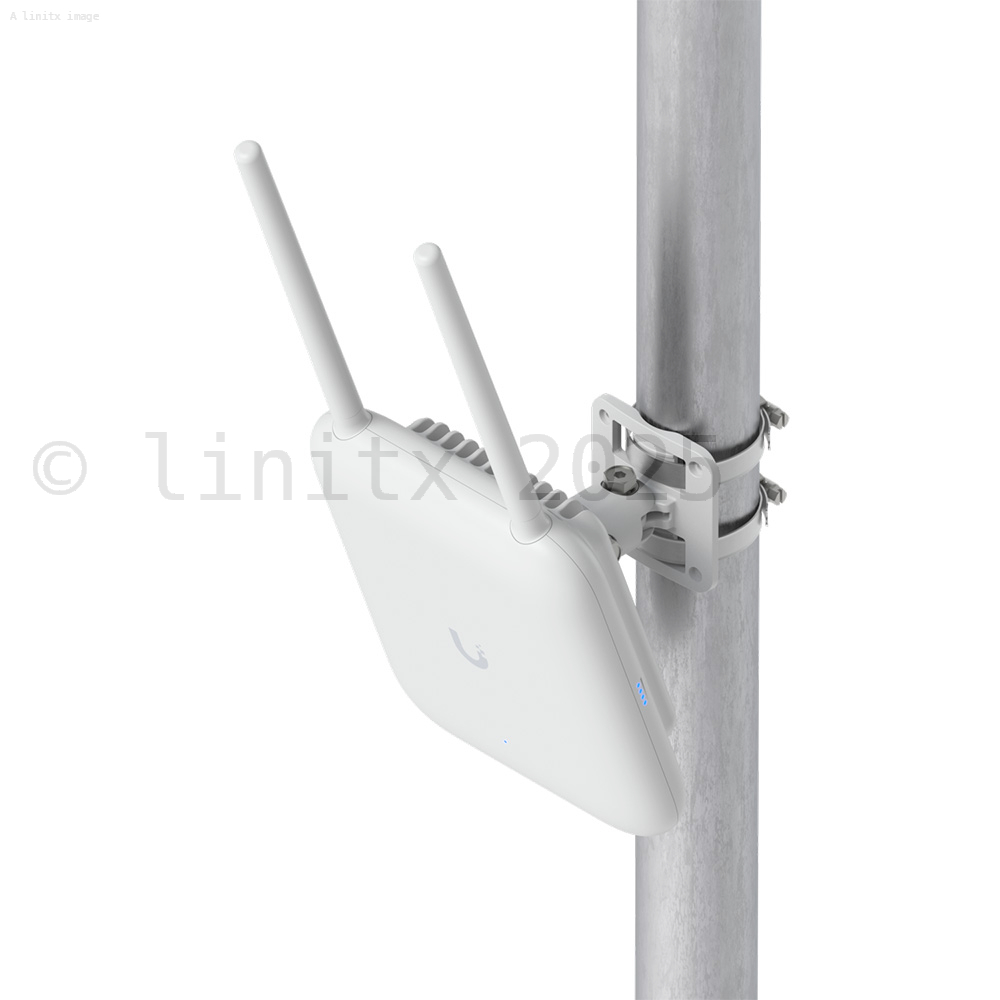

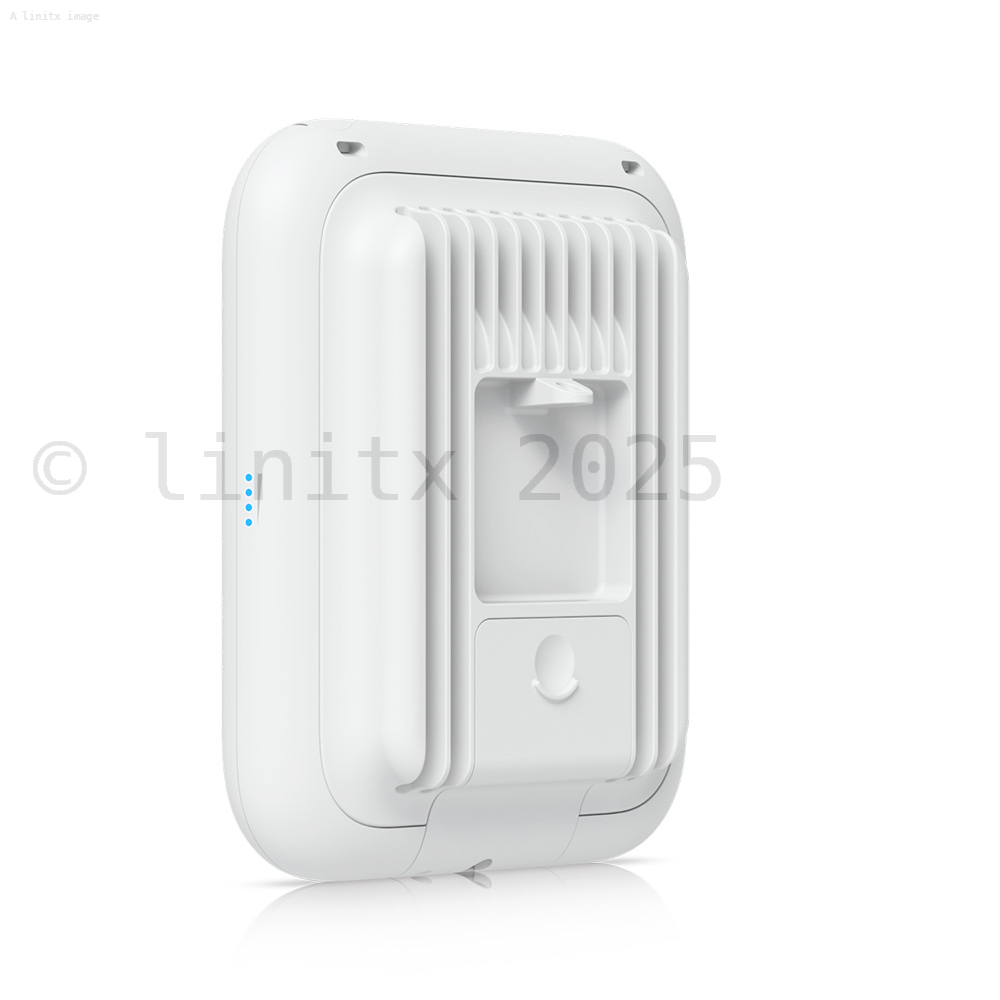

Built with an IPX6 or IP67-rated (with cable-gland door kit) enclosure, the U7 Pro Outdoor is resistant to dust, water, and harsh weather conditions, ensuring durability and long-lasting performance in challenging environments. It features an articulation mounting bracket, allowing for flexible and secure installation on walls or poles to optimise coverage.
Supporting the latest WiFi 7 standard and also the 6GHz radio spectrum, this access point delivers significantly improved speeds, lower latency, and increased network capacity compared to previous generations. Whether for streaming, gaming, IoT connectivity, or enterprise applications, the U7 Pro Outdoor offers next-generation wireless technology to meet demanding networking needs.
*6GHz is currently limited to 25mW outdoors in the UK. For other countries check with local regulations before deploying 6GHz outdoors.
| Mechanical Specifications | ||
|---|---|---|
| Dimensions | Without mount: 170 x 208 x 66.5 mm With mount: 170 x 208 x 121.8 mm | |
| Weight | Device: 1.2 kg Mount: 130 g | |
| Enclosure material | UV-stabilized polycarbonate, aluminium alloy | |
| Mount material | UV-stabilized polycarbonate | |
| Pole mount diameter | 25–63.5 mm (1–2.5") on pipe outer diameter | |
| Wind survivability | 74.6 N at 200 km/h (16.8 lbf at 125 mph) | |

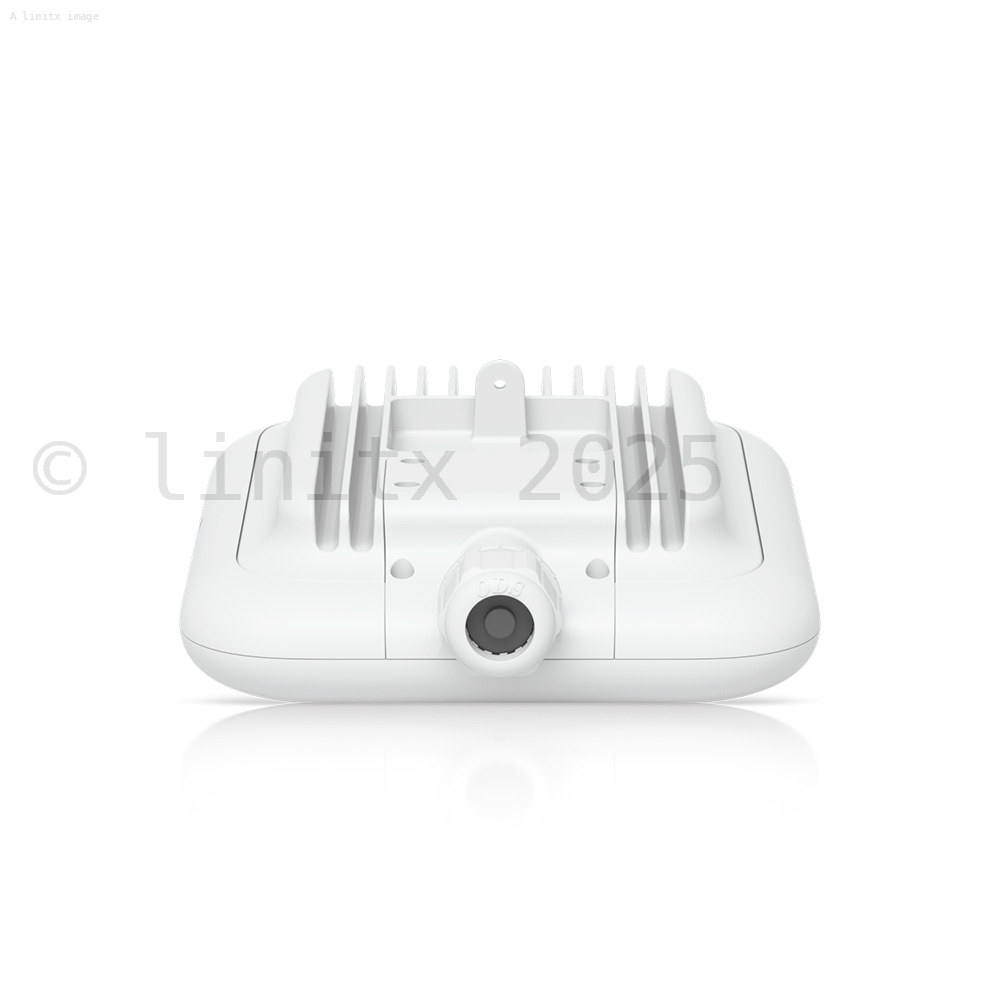

| Weatherproofing | IPX6 IP67 with cable-gland door kit (Included) | |
| Hardware Specifications | ||

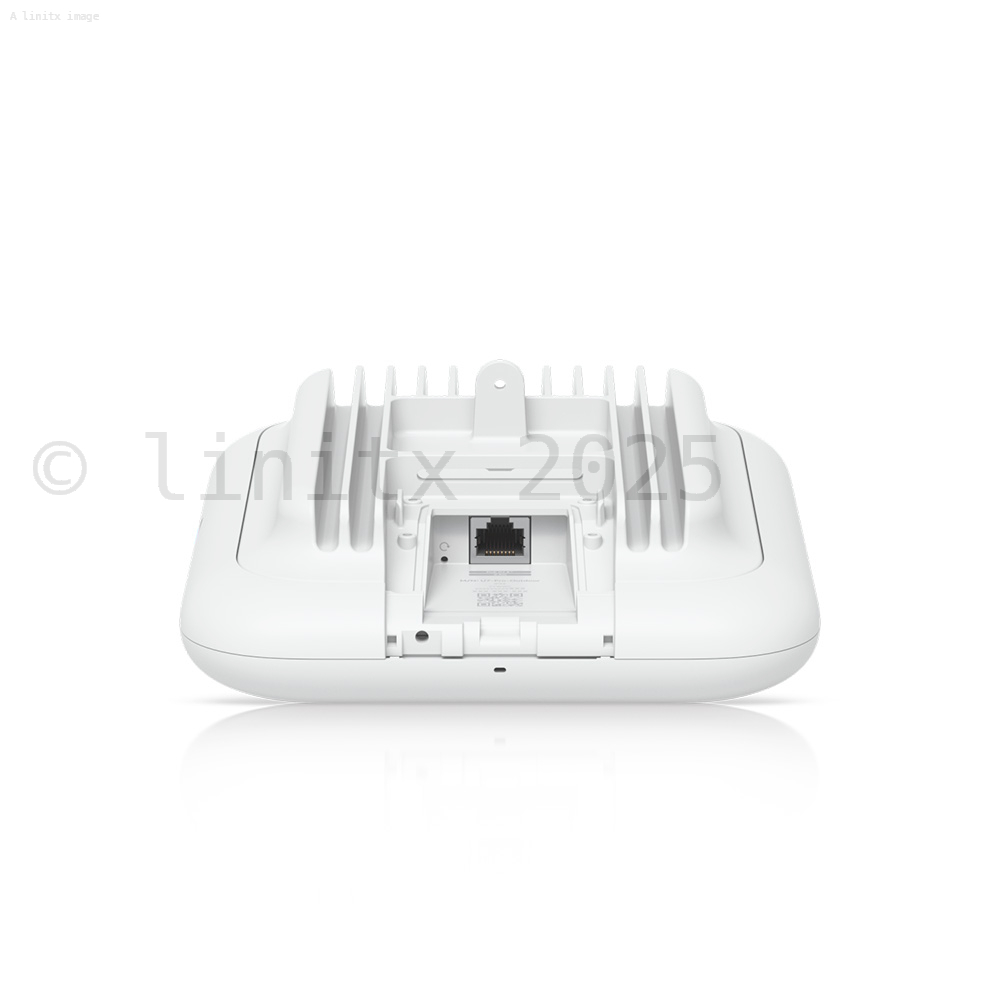

| Networking interface | (1) 1/2.5 GbE RJ45 port | |
| Management interface |
| |
| Power method | PoE+ | |
| Power supply | UniFi PoE switch | |
| Supported voltage range | 42.5—57V DC | |
| Max. power consumption | 21W | |
| Max. TX power 2.4 GHz 5 GHz 6 GHz | 23 dBm 26 dBm 26 dBm* *With 6 GHz Extended Range mode. Available in FCC/IC region only. | |
| MIMO 2.4 GHz 5 GHz 6 GHz |
| |
| Max. data rate 2.4 GHz 5 GHz 6 GHz | 688 Mbps (BW40) 4.3 Gbps (BW240) 5.7 Gbps (BW320) | |
| Antenna gain 2.4 GHz 5 GHz 6 GHz |
| |
| Antenna beamwidth 2.4 GHz 5 GHz 6 GHz |
| |
| Antennas | (1) Directional internal antenna (2) RP-SMA connectors for external antenna | |
| LEDs | (1) Power: white/blue (4) Mesh signal: blue | |
| Button | Factory reset | |
| Mounting | Wall, ceiling, pole | |
| Ambient operating temperature | -30 to 60° C | |
| Ambient operating humidity | 5 to 95% noncondensing | |
| Certifications |
| |
| Software Specifications | ||
| WiFi standards | 802.11a/b/g/n/ac/ax/be (WiFi 6, WiFi 7) | |
| Wireless security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) | |
| BSSID | 8 per radio | |
| VLAN | 802.1Q | |
| Advanced QoS | Per-user rate limiting | |
| Guest traffic isolation | Supported | |
| Concurrent clients | 300+ | |
| Supported Data Rates | ||
| 802.11a |
| |
| 802.11b | 1, 2, 5.5, 11 Mbps | |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps | |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) | |
| 802.11ac |
| |
| 802.11ax (WiFi 6) | 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) | |
| 802.11be (WiFi 7) |
| |
