Ubiquiti UniFi Switch Pro HD 24 PoE - USW-Pro-HD-24-PoE

Ubiquiti USW-Pro-HD-24-PoE-EU

Ubiquiti UniFi Switch Pro HD 24 PoE - USW-Pro-HD-24-PoE
Ubiquiti UniFi Switch Pro HD 24 PoE - USW-Pro-HD-24-PoE Main Image
Ubiquiti UniFi Switch Pro HD 24 PoE - USW-Pro-HD-24-PoE package contents
Ubiquiti UniFi Switch Pro HD 24 PoE - USW-Pro-HD-24-PoE product

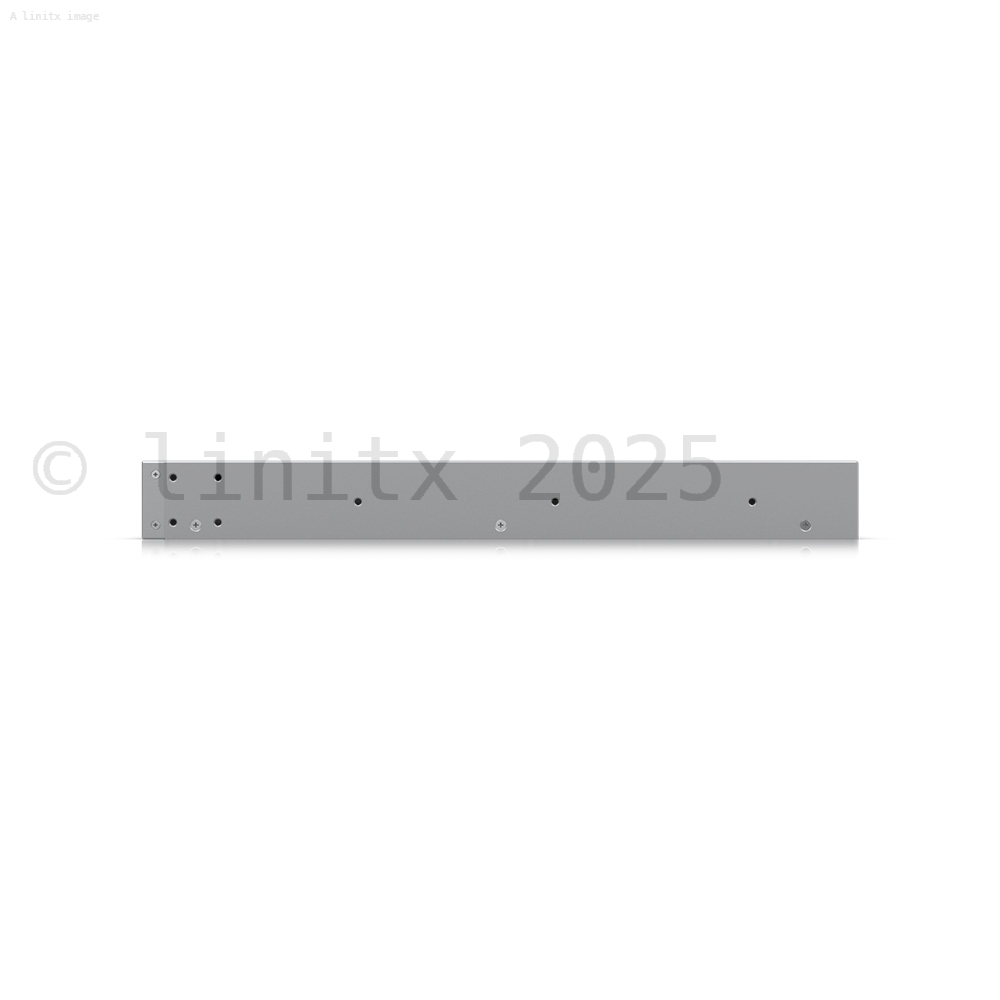

box
Ubiquiti UniFi Switch Pro HD 24 PoE - USW-Pro-HD-24-PoE inside view
Ubiquiti UniFi Switch Pro HD 24 PoE - USW-Pro-HD-24-PoE front of product
Ubiquiti UniFi Switch Pro HD 24 PoE - USW-Pro-HD-24-PoE rear of product
AWAITING STOCK

0 available Shipping today cut off.

Next shipment of 4 has no date yet.

Notify me
0 customer reviews:

£954.00


Choose from the following product options:

Extended Warranty  Extended warranty - covering hardware & software failure.

- +

Availability:Awaiting Date from Manufacturer

Linitx Quick Code # 18147 You can use the quick code in the search box

Manufacturer SKU: USW-Pro-HD-24-PoE-EU

EAN: 817882027649

Manufacturer: Ubiquiti Inc


Quantity1+10+20+50+100+250+
Price£795.00 EXC VAT£787.05 EXC VAT£779.10 EXC VAT£767.18 EXC VAT£755.25 EXC VATCall Us 01449 888000
window dressing ||||

UniFi Pro HD 24 PoE - USW-Pro-HD-24-PoE-EU

At a glance:

  • 1.3” touchscreen
  • 2 x 10 GbE PoE++ ports
  • 22 x 2.5 GbE PoE++ ports
  • 4 x 10G SFP+ ports

The Ubiquiti UniFi Switch Pro HD 24 PoE is a professional-grade, Layer 3 switch designed for high-performance networking. It features 22 Ethernet ports with 2.5 GbE PoE++ support, 2 Ethernet ports with 10 GbE PoE++ support, and 4 SFP+ ports offering 10G connectivity.

With a total PoE capacity of 600W, it can power a variety of devices, including access points and cameras. The switch also includes Etherlighting™ ports that illuminate to indicate port location, speed/link status, and native VLAN/network.



Mechanical Specifications
Dimensions442.4 x 400 x 44 mm
Weight
Without mounting brackets: 6.4 kg
With mounting brackets: 6.5 kg
Enclosure materialSGCC steel
Hardware Specifications
Management interfaceEthernet In-Band
Networking interface
(2) 10/5/2.5/1 GbE, 100 MbE RJ45 ports
(22) 2.5/1 GbE, 100/10 MbE RJ45 ports
(4) 10/1G SFP+ ports
PoE interface(24) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
Total non-blocking throughput115 Gbps
Switching capacity230 Gbps
Forwarding rate171.12 Mpps
Power method(1) Universal input, 100—240V AC, 50/60 Hz
(1) USP-RPS DC input
Power supply
AC/DC, internal, 660W
Supported voltage range100 - 240V AC
Max. power consumption56W (Excluding PoE output)
Total available PoE600 W
Max. PoE wattage per port by PSEPoE: 15.4W
PoE+: 30W
PoE++: 60W
Voltage range PoE modePoE: 44—57V
PoE+: 50—57V
LCM display1.3" touchscreen
ButtonFactory reset
Ambient operating temperature-5 to 40° C
Ambient operating humidity10 to 90% noncondensing
CertificationsCE, FCC, IC
Switching Features
Layer 2 features
IGMP snooping
STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Voice VLAN
Port mirroring
LACP port aggregation
Multicast / broadcast rate limiting
MAC address blocking
Flow control
802.1X control
Jumbo frames
Proprietary loop protection
DHCP snooping / guarding
Egress rate limit
LLDP-MED
Port restricted by MAC
Device isolation with ACLs
QoS
Pro AV
Layer 3 featuresDHCP for locally-managed networks
DHCP relay
Inter-VLAN routing between networks on same switch
Static routing between local networks
Network isolation with ACLs
Etherlighting™
EthernetLocating
Speed/link
Native VLAN/network
SFP+Locating
Speed/link
Native VLAN/network
LEDs
SystemStatus
RPSStatus


There is no box content detail for this product yet.
There are no reviews for this product yet.
